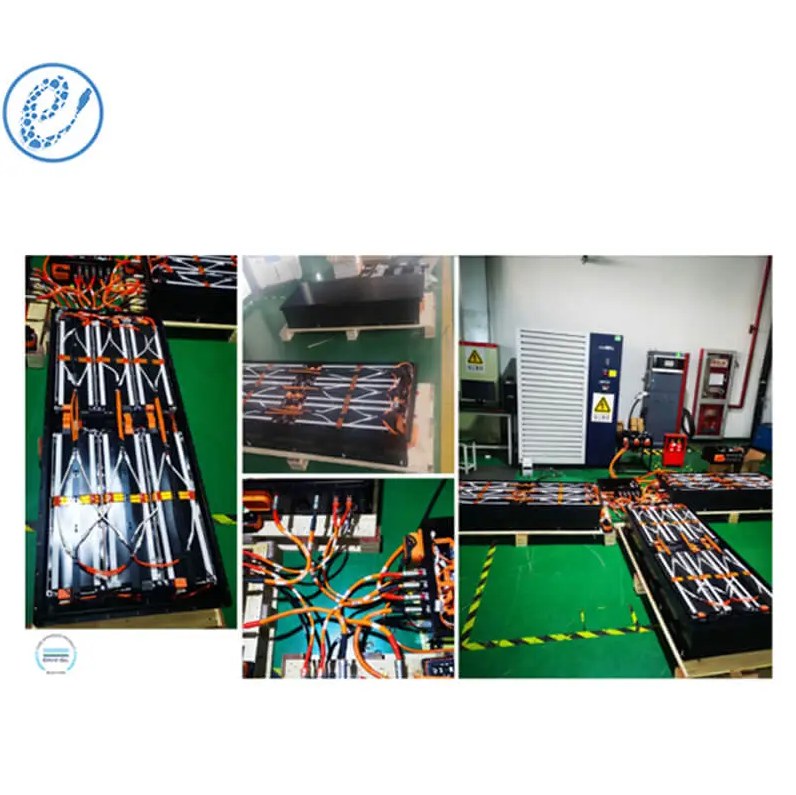

PC020502-96V206A (206AH1P30S) LFP206Ah 1P30S Pack
This LFP206Ah 1P30S Pack is a powerful and reliable energy storage solution. It has a LiFePO4 chemistry, providing excellent cycling performance and a long life span. It has a 30 Series cell configuration, which provides a nominal voltage of 12.8V and a capacity of 206Ah. It is lightweight and compact, making it easy to install and transport.
Specification of PC020502-96V206A (206AH1P30S) LFP206Ah 1P30S Pack
|
Attribute |
206Ah |
|
Chemistry |
LiFePO4 |
|
System Voltage nominal |
96V up to 768V |
|
System Capacity |
206A |
|
system Energy |
16.9kWh-135.2kWh |
|
System Continous charge current |
1C, 206A |
|
System Continous discharge current |
1C, 206A |
|
Temperature range charge |
0℃-55℃ |
|
Temperature range discharge |
-20°℃-55℃ |
|
Heating System |
PTC Heater inside each pack |
|
Ingress protection Pack |
IP67 |
|
Ingress protection PDU |
IP67 |
|
Communication protocoll |
CAN 2.0A/B, SAEJ1939 |
|
Pack size |
Type -L-S-M-LFP-206 |
|
Capacity [Ah] |
206Ah |
|
Voltage [V] |
96 |
|
Cell config. |
30 |
|
Modul config. |
3x (1p10s) |
|
Energy [kWh] |
16.9 |
|
Weight [kg] |
161.5 |
|
Width [mm] |
630 |
|
Heigth [mm] |
240 |
|
Length [mm] |
797 |
|
Fuse |
400A |
If you are interested in building a lithium battery pack, please leave us a message.
Now the eco power battery 180ah price is low, if you have needs to buy custom lithium ion battery, please contact us.
