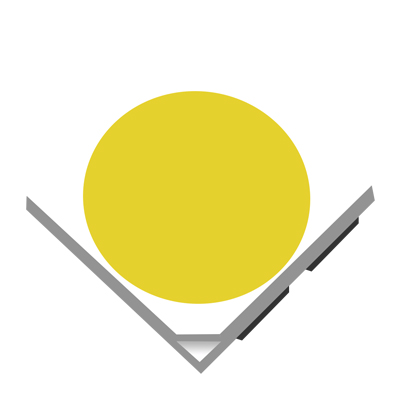

PCT5050 White SMD LED

Dice: Blue(InGaN）)

Operating Temperature: -40～+80℃

Soldering Temperature：260for10sec℃

Super High Power Consumption

Various Colors And Types Available.

Resin(Mold): Silicone

Reverse Voltage: 5V

Storage Temperature: -40～+100℃

Pulsed Forward Current 150mA (Duty 1/10,Pulse Width 0.1mS.）

Features of PCT5050 White SMD LED

1. Advanced centrifugal packaging technology, uniform light spot, excellent anti-vulcanization performance;

2. Material: PCT red copper bracket, gold wire packaging, using imported glue;

3. The 5050 LED package passed 500 rounds of reliability test of high and low temperature cold and hot shock (-40 C/30 min-125 C/30 min), which was higher than the most stringent reliability test standard of the same industry.

4. Follow the international test standards of American Energy Star, the quality is safe and reliable, and the products have been tested and certified by LM-80, EN62471 (Blue Light Hazard).

5. The maximum light efficiency can reach 220-230lm/w, the voltage bin of 3V product is 0.1V range, the voltage bin of 24V product is 0.5V range, and the maximum power can be 3W.

PCT5050 White SMD LED Specification

Other points for PCT5050 White SMD LED attention:

1. No pressure should be exerted to the epoxy shell of the SMD under high temperature.

2. Do not scratch or wipe the lens since the lens and gold wire inside are rather fragile and cross out

easy to break.

3. LED should be used as soon as possible when being taken out of the original package, and should be

stored in anti-moisture and anti-ESD package.

4. Do not stack together assembled PCBs containing LEDs. Impact may scratch the silicone lens or damage the

internal circuitr
