PDC (Polycrystalline Diamond Compact) Cutter
Quantité : 8000kgs Prix : USD0.025 - USD1.05
Polycrystalline Diamond Compact Cutters
E-Grind produces high-quality Polycrystalline diamond composite(PDC) and polycrystalline diamond compact cutters.
Polycrystalline diamond composite(PDC) sheet is made of diamond particles and cemented carbide matrix sintered at 60,000 atmospheres, high temperature and high pressure above 1500 ℃, and has the high hardness of diamond and the high toughness of cemented carbide. The diamond composite sheet has extremely high wear resistance, impact resistance and good thermal stability, and is specially used for oil drilling bits and can also be used for other rock or mining drilling operations.
Customized PDC Diamond
E-Grind can provide a full range of diamond PDC China with diameters ranging from 8mm to 19mm. And we can also provider polycrystalline diamond compact cutters which can be customized according to customer needs.
Polycrystalline diamond composite
D+T is generally used to indicate product specifications
C is Diamond chamfer, the standard degree is 45°, 0.3 mm length.
Diamond table (t) thickness is 2.0 mm, 1.5 mm, 1.0mm.
Dimension can be customized according to customer needs
Available Spec for Oil/gas Grade
DT |
16 |
13 |
10 |
8 |
4 |
19 |
* |
• |
* |
* |
o |
16 |
* |
• |
* |
• |
o |
13 |
o |
• |
* |
• |
• |
10 |
o |
o |
• |
• |
• |
8 |
o |
o |
o |
• |
• |
Available Spec for Mining Grade
DT |
16 |
13 |
10 |
8 |
4 |
19 |
o |
• |
* |
• |
o |
16 |
o |
• |
* |
• |
o |
13 |
o |
* |
* |
• |
• |
10 |
o |
o |
• |
• |
• |
8 |
o |
o |
o |
• |
• |
Note |
|
• |
Available |
o |
NA |
* |
Customize |
Diamond PDC structure
PDC (Polycrystalline Diamond Compact) Cutter
Diamond Table
The uniform micron size distribution, make PDC high bonding force and high density.Various particle sizes can meet customer needs for wear resistance and impact resistance demand.
Interface
We have various interface desgin to ensure optimal combination,
Substrate
E Grind using 13% and 16% Co carbide substrate as standard specificaiton. Ensure the carbide substrate brazed strength to the drill bit body.

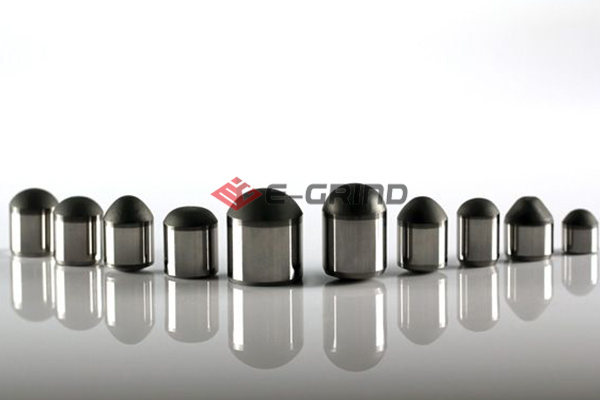

Shaped PDC Diamond
Diamond-reinforced composite cutter are formed by sintering diamond particles and cemented carbide matrix at high temperature and pressure, which not only has the high wear resistance of diamond, but also has the high strength of cemented carbide. The products are widely used in roller cone bits, down-the-hole drill bits, picks, crushing machinery and other fields, and are the best substitute for cemented carbide cutter.
The diamond-reinforced composite cutter adopts the transition layer technology between the diamond layer and the cemented carbide layer, which has outstanding impact resistance and ultra-high wear resistance, making it widely used in high-end PDC bits, such as shock-absorbing cutter, Center cutter, gauge cutter, etc.
As a diamond cutters ltd, we can offer sorts of pdc cutters for sale, if you have needs, please contact us.
More kinds of diamond powders, please visit our website.
Personne à contacter : Liu Locke, 0371 68616868
Bonne affaire : acheter au vendeur
