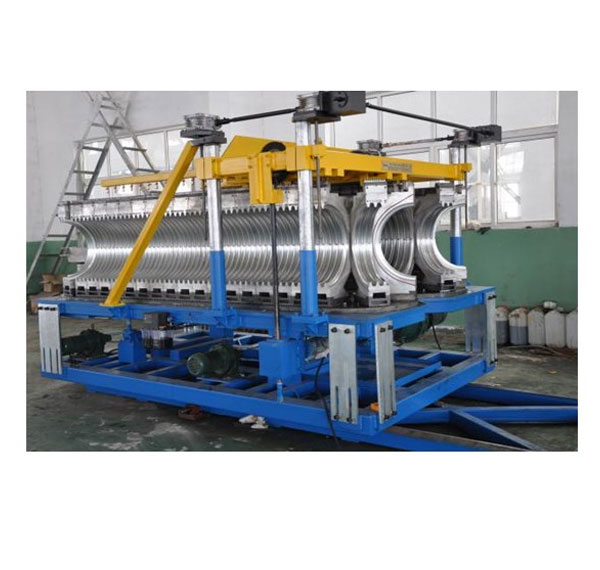

PE PVC Single / Double wall corrugation pipe production line

Quantité : 10 product   Prix : USD 30,000.00-700,00

  1. Close type corrugator and vacuum for forming.
  2. Forming module is moving in a tunnel.
  3. Forming tunnel is clod by water.
  4. Forming module is made of hard alloy steel andanti-corrosion and abrasion.
  5. No any connection between forming module, then reduce time to change.
  6. Provide single wall corrugated pipe machine sand double wall corrugation pipe head die.

Parameter of PE PVC Single / Double wall corrugation pipe production line

Single-wall corrugated pipe production line

Model

JG-DBG90

JG-JBG120

Raw material

PE

Extruder

Φ90/25

Φ120/50

Range of pipe dia

mm

Φ65-115

Φ115-175

.Water consumption

L/H

4000

5000

Water pressure

Mpa

0.4-0.6

0.4-0.6

Number of mould block

pair

50

60

Whole length of mould block

mm

5180

6216

Move speed of mould block

M/mm

1-12

1-8

Dimensions(L x W x H)(approx)

m

18*1.35*1.7

21*1.55*2.2

Total weight(approx)

T

6

9.5

Double-wall corrugated pipe production line

Model

JG-DBG60/125

JG-DBG60/125

Raw material

PVC

PVC

Extruder

Φ60/125

Φ65/132

Range of pipe dia

Φ65/110

Φ110/165

.Water consumption

mm

5000

5000

Water pressure

L/H

0.4-0.6

0.4-0.6

Number of mould block

Mpa

50

60

Whole length of mould block

pair

5180

6216

Move speed of mould block

M/mm

1-12

1-8

Dimensions(L x W x H)(approx)

m

20*1.35*2.15

24.8*1.6*2.25

Total weight(approx)

T

8.5

12

Qingdao Kailite plastic machinery Co., LTD. is a professional plastic pipe production line manufacturers, we provide double wall corrugated pipe machine, corrugated pipe making machine, extrusion line machine and etc. Want to know more? Please contact us.

Localisation : B-9, No.398 Jiaozhou West Road, Zhongyun Industrial Park, 266300 Jiaozhou,
Personne à contacter : machinery kailite, 0532 85213196
