PE PVC Single / Double wall corrugation pipe production line
Close type corrugator and vacuum for forming
Forming module is moving in a tunnel.
Forming tunnel is clod by water.
Forming module is made of hard alloy steel andanti-corrosion and abrasion.
No any connection between forming module, then reduce time to change

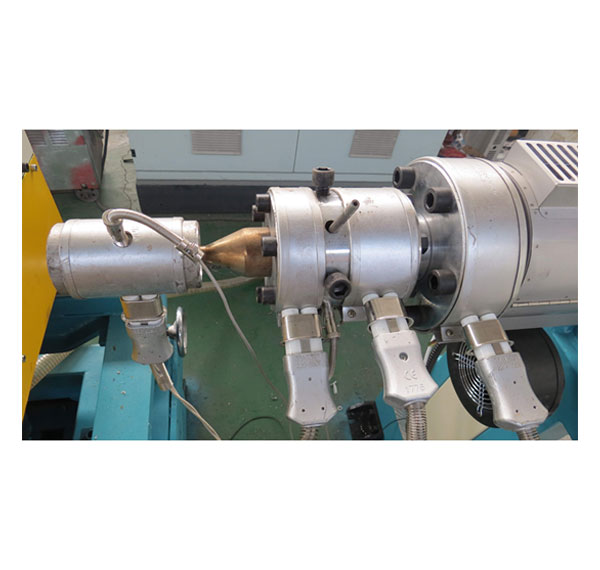

Provide pe pvc single wall corrugated pipe machine and double wall corrugation pipe head die.
Parameter of PE PVC Single / double wall corrugated pipe extrusion line
|
Single-wall corrugated pipe production line |
|||
|
Model |
|
JG-DBG90 |
JG-JBG120 |
|
Raw material |
|
PE |
|
|
Extruder |
|
Φ90/25 |
Φ120/50 |
|
Range of pipe dia |
mm |
Φ65-115 |
Φ115-175 |
|
.Water consumption |
L/H |
4000 |
5000 |
|
Water pressure |
Mpa |
0.4-0.6 |
0.4-0.6 |
|
Number of mould block |
pair |
50 |
60 |
|
Whole length of mould block |
mm |
5180 |
6216 |
|
Move speed of mould block |
M/mm |
1-12 |
1-8 |
|
Dimensions(L x W x H)(approx) |
m |
18*1.35*1.7 |
21*1.55*2.2 |
|
Total weight(approx) |
T |
6 |
9.5 |
|
Double-wall corrugated pipe production machine |
|||
|
Model |
|
JG-DBG60/125 |
JG-DBG60/125 |
|
Raw material |
|
PVC |
PVC |
|
Extruder |
|
Φ60/125 |
Φ65/132 |
|
Range of pipe dia |
|
Φ65/110 |
Φ110/165 |
|
.Water consumption |
mm |
5000 |
5000 |
|
Water pressure |
L/H |
0.4-0.6 |
0.4-0.6 |
|
Number of mould block |
Mpa |
50 |
60 |
|
Whole length of mould block |
pair |
5180 |
6216 |
|
Move speed of mould block |
M/mm |
1-12 |
1-8 |
|
Dimensions(L x W x H)(approx) |
m |
20*1.35*2.15 |
24.8*1.6*2.25 |
|
Total weight(approx) |
T |
8.5 |
12 |
Qingdao Kailite plastic machinery Co., LTD. is a high-tech joint-stock enterprise integrating scientific research, development, production and management of plastic machinery and plastic products and technical services. The company is located in the Second Zhongyun Industrial Park, Jiaozhou city, Qingdao, only 30 minutes from the Qingdao airport by car, a number of expressways across Jiaozhou city, the traffic is very convenient.
Now the price of extrusion line for sale is affordable, if you have needs, please contact us.
Personne à contacter : machinery kailite, 0532 85213196
