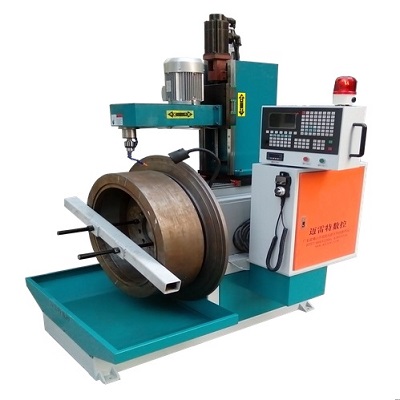

Pellet mill ring die CNC drilling machine
Prix : 15500USD
This MLTOR automatic pellet mill ring die drilling machine is specifically designed for feed, biomass, fuel pellet manufacture industry. The system along with the machine is totally self-developed by our company which has now been widely used in China owning to its considerate function and high positioning accuracy.
Machine Features:
Hole number can be freely set as per your requirement. Equally distributed hole. Positioning accuracy up to 0.001mm.
Fully automatic processing, free speed adjustment, unique cutting craft, greatly reduce the tool wearing speed and extend the lift time.
One man can operate several machines, double working efficiency.
Drilling bit torque upper and lower limit setting, avoid bit breakage.
Release hole depth of different row can be set at once, automatic detection in processing.
Directly start drilling after tool replacement, no need to align hole.
Easy operation, user can learn how to operate in 5 minute, hole diameter input complete in one minute.
Technical Data:
Conventional Model: MLT-WZ850
Horizontal stroke: 400mm
Z axis stroke: 300mm
Drilling diameter: 0.8-10mm
Ring die diameter: 250-680mm(inner), 850mm(outer)
Positioning accuracy: 0.02mm
Spindle speed: 0-5000RPM
Spindle power: 1.5kw
System language: Chinese/English
size: 162 x 120 x 210cm
Weight: about 700kgs
