Permanent Magnetic Chucks

Permanent magnetic chuck is also called magnetic chuck, it is widely used as the magnetic clamp in the machining field, such as machinery factory, mold factory. It can greatly improve the efficiency of guide magnetic clamping steel material. Permanent magnetic chuck uses high-performance NdFeB rare earth materials (N > 40) as the kernel, by turning the handle on the chuck, thereby changing the internal NdFeB magnetic system of suction up, achieves holding and release on the processed workpieces.

The application of permanent magnetic chucks:

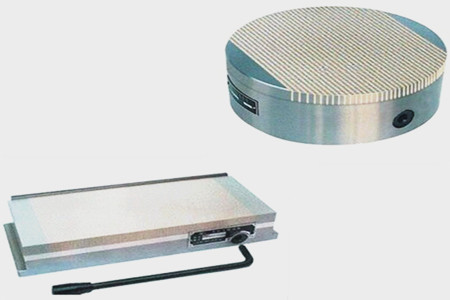

Th permanent magnetic chucks can be used as an auxiliary tool for all kinds of surface grinding machines, universal tools, grinding machines and lathes, etc., to absorb ferromagnetic materials. The permanent magnetic chuck has the advantages of no power supply, no heating, small deformation, high precision and wide application range. According to its structure, it can be divided into rectangle permanent magnetic chuck and circular permanent magnetic chuck. For circular permanent magnetic chuck, there are different pole structures, such as straight bar, close pole, ordinary pole and radial pole. Permanent magnetic chucks are applicable to grinding machines, lathes, fitter lines, etc., the magnetic material of the suction process, suction up to 100N/cm2.

Rectangular permanent magnetic chucks are suitable for lathe machines, grinding machines and milling machine, EDM, etc.

The features of permanent magnetic chuck:

1. When the magnetic circuit is switched, the accuracy of the magnetic force on the surface of the permanent magnetic chucks can not be changed, thus ensuring the high precision of the processing

2. Can be mounted on a rotary grinder

3. Suitable for small thin workpiece precision grinding

4. Large suction, and low residual magnetism

5. To enhance the grinding of thin workpieces

6. Adjust magnetic intensity

7. Sealing structure, waterproof and coolant

8. Easy to operate

Ningbo Beilun Meank Magnetics Co., Ltd is located in the home of Neodymium-Iron-Boron magnets -Ningbo City. We're engaged in the production of rare earth neodymium magnets for over 10 years.

As a reliable holding magnets manufacturer, we have types of related products for sale, if you have needs, please contact us.
