Phase Shifted FBG

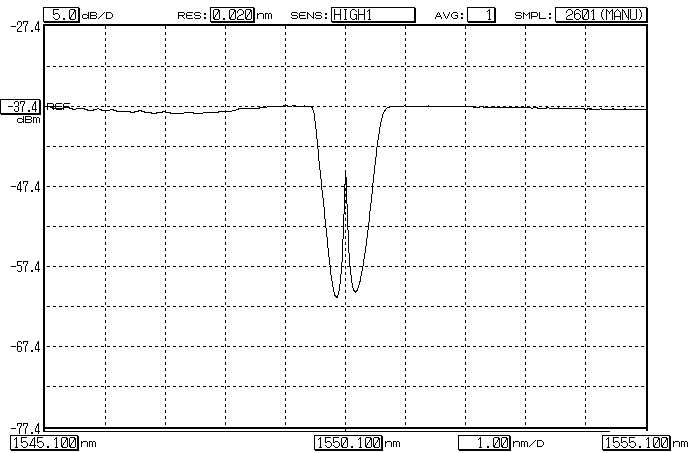

Phase Shifted FBG is to introduce phase discontinuity points in the FBG, and generate a very narrow transmission window in the reflection spectrum of the FBG, the transmission wavelength varies with the phase shift amount.
Phase Shifted FBG can be used as a demultiplexer in dense wavelength division multiplexing (DWDM) systems. The size, location and points of phase shift have an important impact on the performance of the demultiplexer.
Features Of phase shifted fiber bragg grating
Low Insertion Loss
High Reflectivity
Easy Installation
Application Of phase shift grating
WDM Systems
Optical Fiber Lasers
High Finesse Transmission Filters
Ultrasonic Detectors
Optical Fiber Sensors
Specification Of Phase Shifted FBG
|
Parameter |
Unit |
Value |
|
Center Wavelength |
nm |
1510 ~ 1590 |
|
Reflectivity |
% |
50-99% |
|
Transmission Bandwidth |
nm |
0.05 (typical) |
|
Bandwidth (FWHM) |
nm |
0.1~0.8 |
|
SLSR |
dB |
≥8 |
|
FBG Recoating |
-- |
None, Acrylate, Polyimide, or custom |
|
Tensile Strength |
kpsi |
≥100 |
|
Fiber Type |
-- |
Single-Mode |
|
Fiber Coating |
-- |
Acrylate |
|
Pigtail Length |
m |
Standard 1m both ends, or custom |
|
Optical Connector |
-- |
Bare Fiber, FC/APC, SC/APC, or custom |
AtGrating is a professional supplier for optical fiber sensing. AtGrating offers bragg filters, fiber bragg grating pressure sensor, fbg sensing, etc. For more information, please feel free to contact us!
