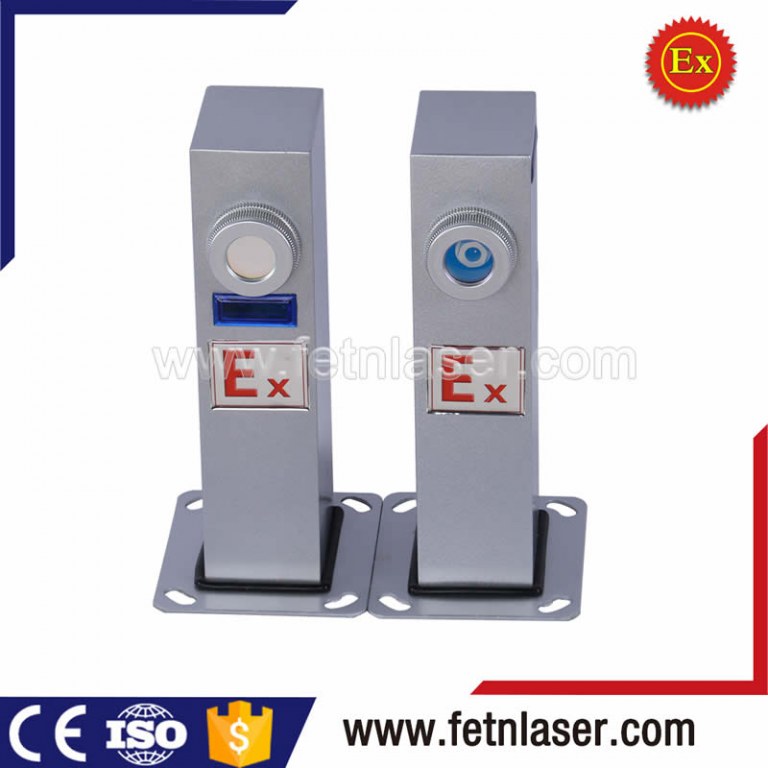

Photoelectric beam detector active laser beams intruder safety alarm

Item

Technical indexes

Model

XD-A50/100/200/300/500ib

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

one-layer alert

Alarm mode

Beam blocking alarm

Working voltage

DC12V±10%

Working current:

180mA when transmitting; 75mA when receiving (alarm)

Alarm output mode

Solid relay normally closed contact; contact capacity: DC24V/1A

Angles at the transmitting and receiving ends

Divergence angle: horizontal <6′ vertical <30′ Receiving angle: <±8° </p>

Optical axis adjustment angle

Horizontal ±15° Vertical ±15° (range adjustable.)

Product dimension

60mm (L) × 80mm (W) × 245mm (H)

Chassis dimension

110mm (L) × 130mm (W) × 6mm (H)

Material

Aluminum alloy

Dimension of installation hole

4 ∮10 mm holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h

Explosive proof grade

ExibmbIIBT4 Gb
Function instruction: XD-A***ib series laser intrusion detector adopts single-layer bijection structure, with a single beam as the alert line, and a pair of detectors as the alert unit, and is capable of continuous laying out and linking other equipment such as lighting device, alarming device, camera, etc. through alarm host.
XD-A**ib series intrinsically safe type three-beam laser intrusion detector has strong ability to resist cold and heat, electromagnetic radiation, interference of miscellaneous lights and could adapt to rough weather of wind, rain, dust, frost, etc., thus being suitable for perimeter areas with higher alert rate requirements.
