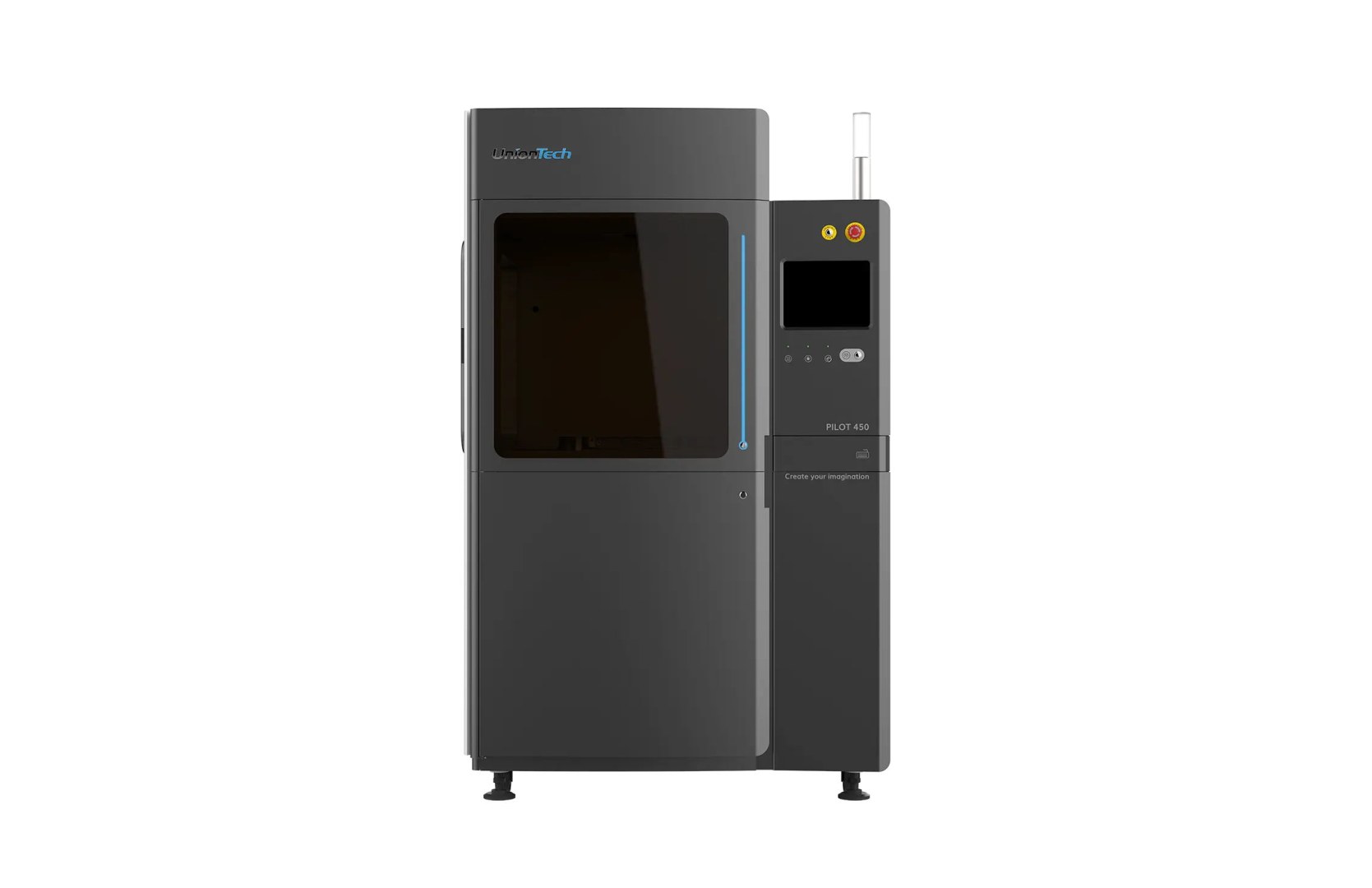

Pilot450
Pilot450
Industrial SLA 3D Pilot Printer
Industrial SLA 3D printing technology
Practical build capacity of 450 × 450 × 400 mm
Industry-leading print quality, speed and precision
3D printing software for file preparation and production
Compatible with a variety of 3D printing materials
Pilot450 Technical Data
|
Build Volume |
450 × 450 × 400 mm |
|
17.7 × 17.7 × 15.7 in |
|
|
Accuracy |
Dimension <100 mm: ±0.1 mm</span> |
|
Dimension ≥100 mm: ±0.1% x Dimension |
|
|
Layer Thickness |
0.05-0.25 mm |
|
Laser |
355 nm, solid-state frequency tripled |
|
Nd: YVO₄ |
|
|
Beam Size |
0.08-0.12 mm |
|
Scanning Speed |
6-10 m/s |
|
Control Software |
UnionTech™ RSCON |
|
Operation System |
Windows 10 |
|
Date Interface |
.stl |
|
Network |
Ethernet, IEEE802.3, TCP/IP |
|
Electrical Requirements |
200-240 VAC, 50/60 Hz, Single Phase |
|
Rated Power |
3.0 kVA |
|
Systems Control |
Closed-loop |
|
Temperature Range |
72–79 °F (22–26 °C) |
|
Maximum Change Rate |
1 °C/hour |
|
Relative Humidity |
< 40% |
|
Resin Vat |
Replaceable |
|
Machine Dimensions |
1310 × 1290 × 2135 mm |
|
51.58 x 50.79 x 84.06 in |
|
|
Machine Weight |
945 kg |
Now the price of 3d printer 450 x 450 is reasonable, anything you need, please contact us.
Union tech 3d printer was established in 2000, is one of the early enterprises involved in the 3D printing technology, witnessed the overall development process of 3D printing technology, currently has a large market share and user groups of globe 3D printing market. It has a wide industry influence and brand awareness in the field of 3D printing.
If you want to know more kinds of professional 3d printer, please visit our website.
