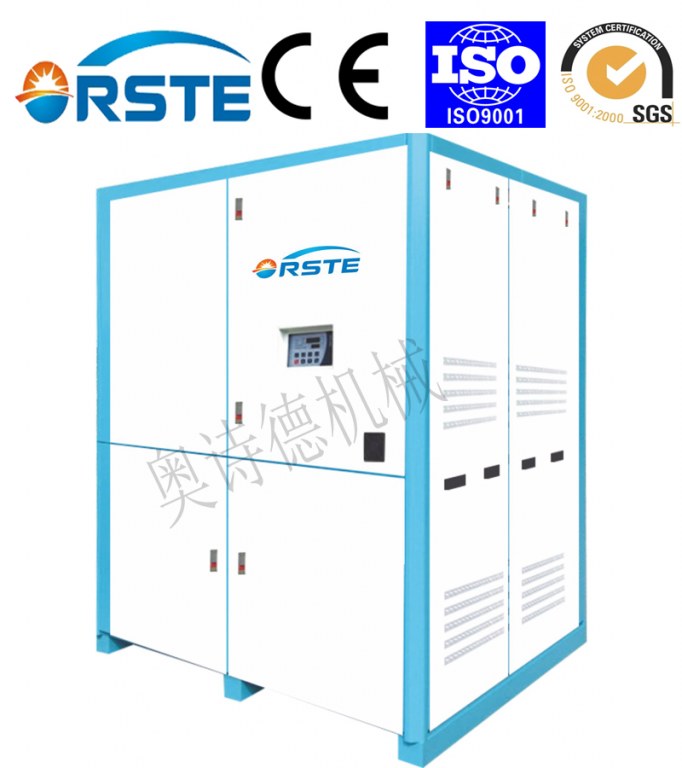

Plastic Drying Machine Twin-tower Desiccant Dehumidifying Dryer
Quantité : New Prix : 6 000,00 €
Plastic Drying Machine Twin-tower Desiccant Dehumidifying Dryer
NAMING PRINCIPLE
OTD – xxx
① ②
① Orste Twin-tower Desiccant Dehumidifier
② Drying Air Quantity (m3/hr)
FEATURES
1. Adopt German Simens PLC Program Controller and Temp. module.
2. Adopt large flow blower which has a better dehumidifying effect than normal blowers.
3. Unique dual-tower molecular sieve design achieves good effect through dehumidifying of molecular sieve by hot air, energy-saving and efficient.
4. Equipped with return air filter ensures no contamination to the molecular sieve.
5. Auto-adjust dry air quantity and temp. according to usage of material, prevent over-heating or thermal degradation of plastic resin.
6. Dew point can be as low as -70oC.
APPLICATION
OTD Twin-tower Desiccant Dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -70oC, the largest of which can provide dry air up to a quantity of 3,800 m3/hr.
PARAMETERS
|
Model OTD- |
1400 |
1900 |
2000 |
2700 |
3800 |
|
|
Rege. Heater (kw) |
22.8 |
|||||
|
Rege. Blower (kw) |
3 |
|||||
|
Process Heater (kw) |
64 |
96 |
80 |
96 |
128 |
|
|
Process Blower (kw) |
12.5 |
20 |
8.5*2 |
12.5*2 |
20*2 |
|
|
Drying Air Quantity (m3/hr) |
1400 |
1900 |
2000 |
2700 |
3800 |
|
|
Pipe Dia. (inch) |
5” |
5” |
6” |
8” |
12” |
|
|
Dimension |
H (mm) |
2365 |
2365 |
2365 |
2365 |
2365 |
|
W (mm) |
1505 |
1505 |
1505 |
1505 |
1905 |
|
|
D (mm) |
1800 |
1800 |
1800 |
1800 |
1800 |
|
|
Weight (kg) |
780 |
810 |
825 |
880 |
925 |
|
Personne à contacter : Carol Guo, 0086 15802545210
Bonne affaire : acheter au vendeur
