Plastic Extruding Profile Production Equipment

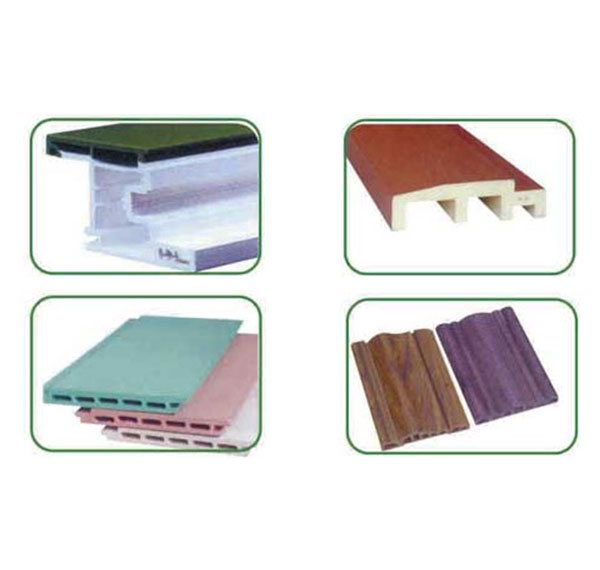

This line is the manufacture facilities of PVC plastic profile materials, including window and door series profile, plate, sheet, tiny bubble profile and tiny bubble ornament plate.
The big shape plastic door and window profile plastic pipe production line are developed by our corporation introduce the advanced technology from abroad, forming a complete system with twin conical screw extruder, it feature high automation degree, smooth work performance, big yield and high efficiency.
The parameter of Plastic Extruding Profile Production Machines
|
Main machine |
SJSZ60*22 |
SJ-90*25 |
SJ-65*30 |
|
Vacuum forming flat table |
SDZ-3200 |
SDT-90 |
SDT-65 |
|
Effective length of flat table mm |
3200 |
2800 |
1500 |
|
Vacuum pump power kw |
3*7.5 |
2*5.5 |
5.5 |
|
Drawing machine type |
SXQ-240 |
SLQ-200 |
SLQ-200 |
|
Draw length mm |
300 |
300 |
300 |
|
Draw velocity m/min |
0.3-3 |
0.3-3 |
0.3-3 |
|
Draw power kw |
2*1.5 |
2.2 |
1.5 |
|
Cut power kw |
1.1 |
1.1 |
1.1 |
|
Cut mode |
Pneumatic/ voluntarily |
Pneumatic/ voluntarily |
Pneumatic/ voluntarily |
|
Unit weight kg |
8000 |
7000 |
6000 |
|
Outside dimension m*m*m |
16*2.2*2.9 |
1*2.2*1.9 |
14*1.9*1.9 |
If you have needs to buy a plastic extruder net machine, please choose our company.
