Plastic film granulator
high quality plastic film granulator
high quality plastic film granulator Applications:
Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, etc
Material shapes: film, bag, (PE, PP) regrind
Material types: rolls, loose, bundled
Material comes from offcut, industry defective film, washed film and printed film.
Note: depending on different material properties, various downstream equipments are needed.
high quality plastic film granulator Advantages:
1.Material will be cut, pre-heated, pre-dried, mixed and compacted in the cutter Compactor machine
2.Highly efficient with good performance,Less power consumption,Highly automatic
3.Special designed for recycling PE,PP films and regrind in one machine
4.CE Certificate
5.Long service life
6.Customized
7.Support installation and operation training at Buyer's plant
Remark: films and regrind can be recycled in one machine, together or separately
high quality plastic film granulator Production Process:
Feeding materials onto the Belt Conveyor – materials being pre-heated, cut and compacted in the Cutter Compactor /Agglomerating machine – being squeezed evenly in the Extruder – coming out from the machine head after venting and filtering system Hydraulic screen changer – being cut by Water ring pelletizing sytem – being dried by Dewatering system – being trasnferred into the Silo – the End.
high quality plastic film granulator Technical parameters for reference:
|
Model |
Screw Diameter(mm) |
L/D |
Capacity(PE) |
Capacity(PP) |
|
QT-ML85 |
85 |
33 |
150-200 |
100-150 |
|
QT-ML100 |
100 |
33 |
250-350 |
200-300 |
|
QT-ML130 |
130 |
33 |
450-550 |
400-500 |
|
QT-ML160 |
160 |
33 |
650-800 |
600-750 |
|
QT-ML180 |
180 |
28 |
750-1200 |
700-1000 |

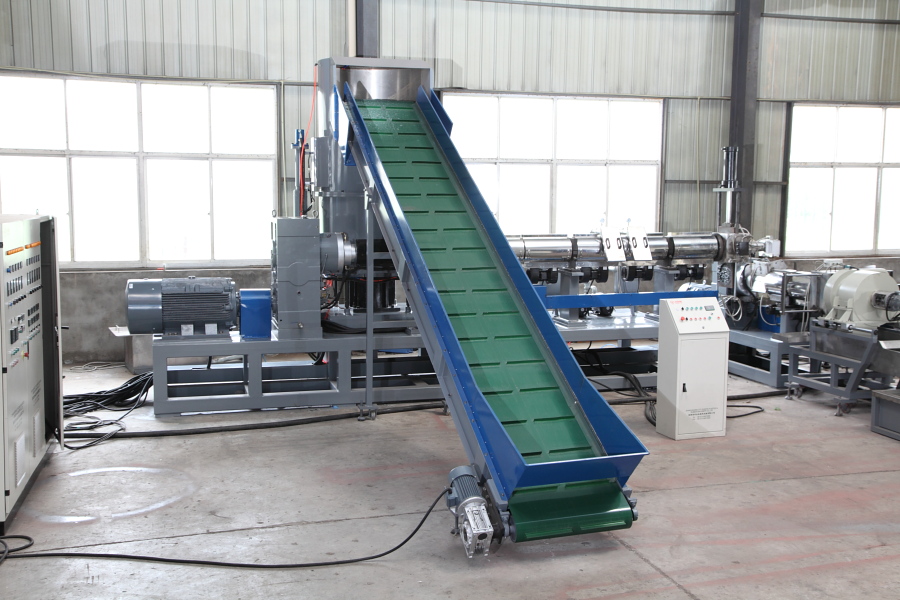

high quality plastic film granulator detailed photos






<img data-alt="high quality plastic film granulator" height="248.89999999999998" ori-height="262" ori-width="560" src="http://g03.s.alicdn.com/kf/HT1PwY.FGVaXXagOFbXH/221101283/HT1PwY.FGVaXXagOFbXH.jpg" style="margin: 0px; padding: 0px; border: 0px; font-family: inherit; font-size:0px; font-style: inherit; font-variant: inherit; font-weight: inherit; line-height: inherit; vertical-align: middle; color: transparent; max-width: 76
