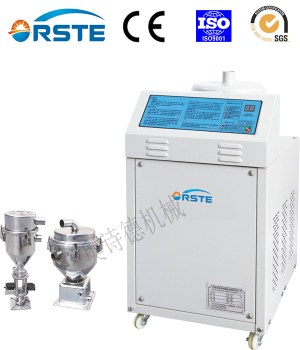

Plastic Loading Machine Auto-loader

Plastic Loading Machine Auto-loader

NAMING PRINCIPLE

OAL- xxS

① ②

① Orste Auto-Loader

② Motor Power (HP)

S: Separate Type

FEATURES

1. Microprocessor for ease of use and accurate control.

2. Stainless hopper receiver ensures no material contamination.

3. Motor overload protector ensures long service life of motor.

4. OAL-S loaders adopts stainless steel mesh thus avoids damage to the motor.

5. Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.

6. Both micro-switch hopper (OVH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.

FUNCTIONAL SCHEME

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

PARAMETERS
