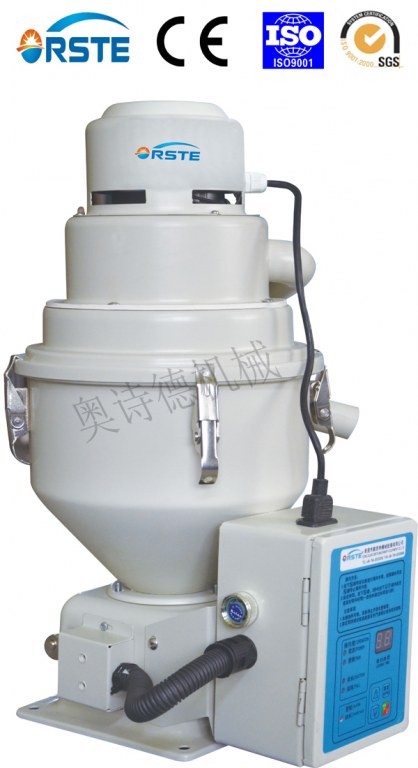

Plastic Loading Machine Self-contained Vacuum Loader

Plastic Loading Machine Self-contained Vacuum Loader

NAMING PRINCIPLE

OAL- xxx - xx

① ② ③

① Orste Auto-Loader

② Motor Power (HP)

③ Notes

P: Equipped with Photo-sensor hopper receiver

FEATURES

1. OAL adopts carbon brush motor with fast rotating speed and large air quantity.

2. Small space occupation and easy movement and installation.

3. Wire-control controller is user-friendly，automatic cleaning function is optional.

4. Hopper and base mount positions are adjustable.

5. Equipped with micro-switch with high sensitivity and stable quality

6. Equipped with hinged handle hopper lid that connected by hinges for easy mesh cleaning.

7. Complete safety protection function device, like material shortage alarm.

8. Completely avoid the danger of manually loading material, thus save manpower cost and improve work efficiency.

FUNCTIONAL SCHEME

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

PARAMETERS
