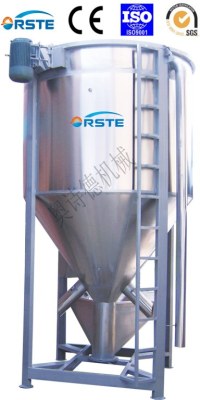

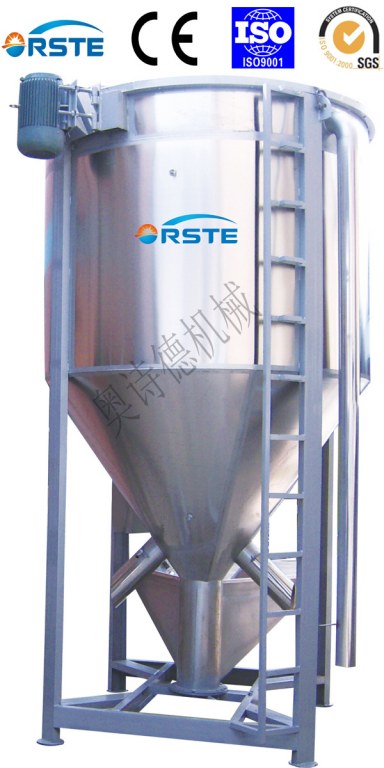

Plastic Mixing Machine Vertical Mixer

Plastic Mixing Machine Vertical Mixer

NAMING PRINCIPLE

OVM-xxx

① ②

① Orste Vertical Mixer

② Mixer Capacity (kg)

FEATURES

1. Material-contact surface are all made of stainless steel ensures no contamination to the material.

2. Vertical screw features fast and even mixing.

3. Detachable top lid design makes it convenient for cleaning and maintenance.

4. Auto timing device can set auto-stop within the range from 0 hr to 300 hrs.

5. Adopt the working method of loading while mixing, thus the purpose of saving mixing time and improving working efficiency can be achieved.

6. Protection devices like main power switch and safety interlock ensure the safety of the operator.

APPLICATION

OVM Vertical Mixer is mainly applicable in the mixing of large quantity of plastic materials like raw materials, masterbatch and recycled materials. OVM can not be used to deal with plastic powder and all kinds of foods, chemicals, and inflammable, explosive and volatile materials.

FUNCTIONAL SCHEME

To achieve the aim of mixing material, screw blades are used to generate vortex. Materials are sucked towards mixing screws at the center of hopper bottom by vortex, the materials whirl upward to the top and fall down in the form of umbrella, it works in such a recycle, so that the evenly mixing can be fulfilled in a short period.

PARAMETERS
