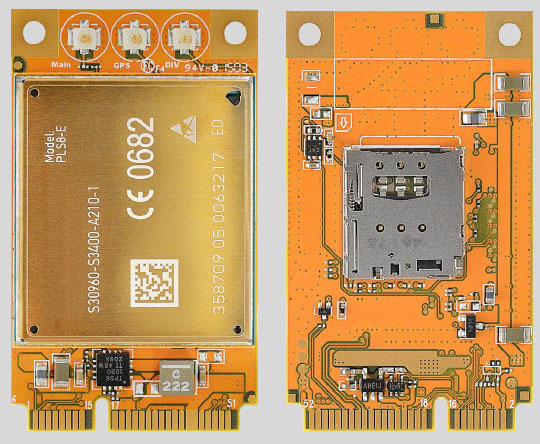

PLS8-E 4G Lte module

The new generation of Lena series is designed for M2M applications in partnership with Gemalto M2M, the worldwide leading supplier of wireless modules for the cellular machine-to machine (M2M) communication market. This series of devices is based on the miniPCI Express Mini Card standard with a USB 2.0 interface. With a variety of advanced air interfaces supported, Lena series enables any mobile computing device to be a communication tool.

Specifications

* Type of product : Cellular LTE expansion card

* Technology : GSM, GPRS, EDGE, 3G, HSDPA, HSUPA, LTE

* Card interfac : Mini PCI Express

* Interface bus : USB 2.0

* Antenna interface : U.FL connector

* SIM card slot : Micro-SIM

* Operating system : Windows 8, Windows 7, Windows Vista, Windows XP, Linux, Andriod

* Application resources : AT commands

* Power : Input voltage: 3.0 - 3.6 (V)

* Operating temperature : -30°C to +85°C

* Form factor : PCI Express Mini Card

* Dimensions : Length: 51 (mm)

* Width: 30 (mm)

* Heigth: 4.75 (mm)

* GSM/GPRS/EDGE : 850 / 900/ 1800 / 1900 MHz

* HSPA+/UMTS : 900/ 1800 / 2100 MHz

* FDD-LTE : 800 / 900 / 1800 / 2100 / 2600

* DL : 100Mbps

* UL : 50Mbps
