PM Series
IPM6 | IPM10 |
OPM8 | OPM10 | OPM16
Dual Backup
High Refresh
Adjustable bracket
Protective top cover
Rubber module mask
Quick lock & fast assembly
Independent RCD Protection
Indicator & One key detection
Rotating Design for Emergency
Professional Software PM Player
Parameter
Indoor / Outdoor PM |
IPM6 |
IPM10 |
OPM8 |
OPM10 |
OPM16 |
Pixel Pitch(mm) |
6 |
10 |
8 |
10 |
16 |
Pixel Matrix Per Sq.m |
27777 |
10000 |
15625 |
10000 |
3906 |
Pixel Configuration |
SMD3528 |
SMD3528 |
SMD3535 |
SMD3535 |
SMD3535 |
Brightness (nits) |
2200 |
1800 |
6800 |
7500 |
8000 |
Scan |
1/8 |
1/4 |
1/3 |
1/2 |
1/1 |
Module Dimension |
192x192mm/0.63x0.63ft |
320x160mm/1.05x0.52ft |
320x160mm/1.05x0.52ft |
320x160mm/1.05x0.52ft |
256x256mm/0.84x0.84ft |
Cabinet Dimension |
960x960mm/3.15x3.15ft |
1280x960mm/4.2x3.15ft |
1280x960mm/4.2x3.15ft |
1280x960mm/4.2x3.15ft |
1024x1024mm/3.36x3.36ft |
Cabinet Resolution |
160x160 |
128x96 |
160x120 |
128x96 |
64x64 |
Cabinet Weight |
40kg / 88Ib (Iron) |
44kg / 97Ib (Iron) |
49kg / 108Ib (Iron) |
48kg / 105Ib (Iron) |
46kg / 101Ib (Iron) |
Power Con. (Max / Avg) |
550 / 100 w/sq.m |
500 / 90 w/sq.m |
680 / 120 w/sq.m |
650 / 110 w/sq.m |
690 / 130 w/sq.m |
IP Rate |
IP43 |
IP65 |
|||
Service Access |
Front / Rear |
Front / Rear |
|||
Refresh Rate (HZ) |
2880 |
≥2880 |
|||
Grey Scale (bit) |
14bit |
16bit |
|||
Viewing Angle (H/V) |
140 / 140 |
140 / 140 |
|||
Input Voltage (AC) |
110V / 240V |
110V / 240V |
* Specifications and photos are subject to change without prior notice.

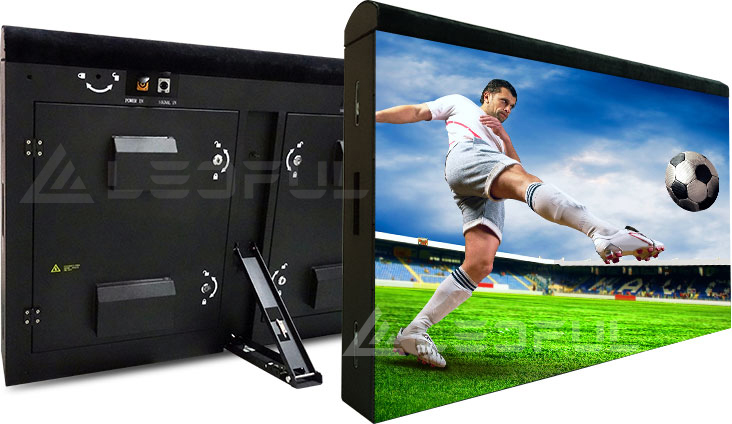

Rotating Design with Wheels for Emergency Exit
LEDFUL PM series with rotating base and wheels for emergency exit for perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most football associations.
Adjustable Bracket
Cabinet adjustable angle between 60°and 90°
Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.
Independent RCD Protection
RCDs protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.
Professional Software PM Player
LEDFUL PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
High Brightness: ≥7000nits
High Grey Scale: 65536 levels
High Refresh Rate: 2880Hz
High Contrast: 5000: 1
SMD Performance and View Angle
Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing
Energy Saving Stadium Perimeter
LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
We are LED screen company,we provide perimeter display,stadium perimeter led display,perimeter led display,perimeter led screen,perimeter LED screen,led perimeter screen and led perimeter display,RFQ today.
