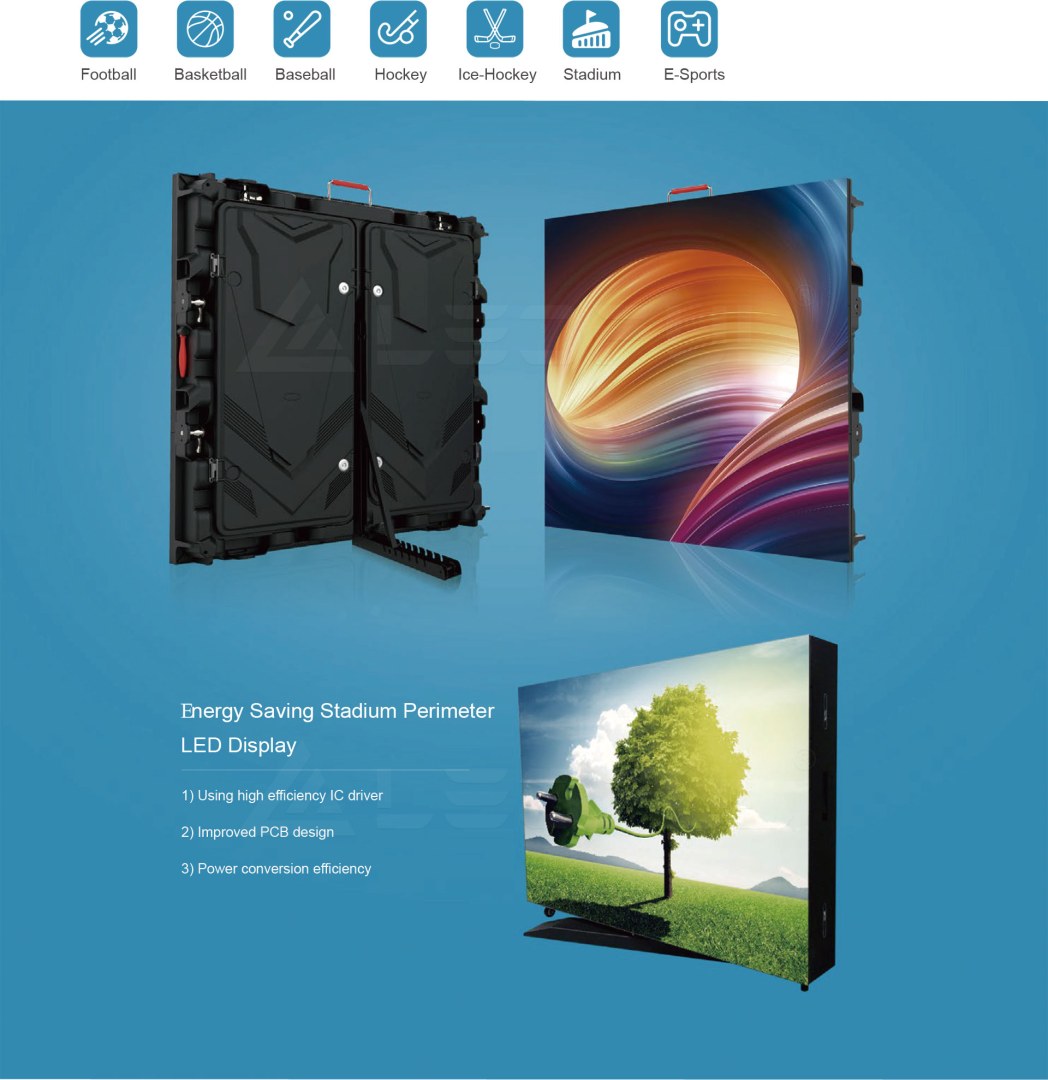

PM Series Sport Stadium Perimeter LED Display
Specification
|
Model |
IPM5R |
IPM10R |
OPM6.6R |
OPM8R |
OPM10R |
|
Pixel Pitch(mm) |
5 |
10 |
6.67 |
8 |
10 |
|
Pixel Matrix Per Sq.m |
40000 |
10000 |
22500 |
15625 |
10000 |
|
Pixel Configuration |
SMD2121 |
SMD3528 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Brightness (nits) |
1200 |
1500 |
6000 |
6000 |
6000 |
|
Scan |
1/8 |
1/8 |
1/2 |
1/2 |
1/2 |
|
Module Dimension |
320x160mm / 1.05x0.52ft |
320x160mm / 1.05x0.52ft |
320x160mm / 1.05x0.52ft |
320x160mm / 1.05x0.52ft |
320x160mm / 1.05x0.52ft |
|
Cabinet Dimension |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960m m / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
|
Cabinet Resolution |
192x192 |
96x96 |
144x144 |
120x120 |
96x96 |
|
Cabinet Weight |
28kg Die casting aluminum |
28kg Die casting aluminum |
28kg Die casting aluminum |
28kg Die casting aluminum |
28kg Die casting aluminum |
|
Power Con. (Max / Avg) |
900 / 180 w/sqm |
900 / 180 w/sq.m |
900 / 180 w/sq.m |
900 / 180 w/sq.m |
900 / 180w/sq.m |
|
IP Rate |
IP43 |
IP65 |
|||
|
Service Access |
Front / Rear |
Rear |
|||
|
Refresh Rate (HZ) |
＞1920 |
>1920 |
|||
|
Grey Scale (bit) |
14bit |
16bit |
|||
|
Viewing Angle (H/V) |
140/140 |
140/140 |
|||
|
Input Voltage (AC) |
110V/220V |
110V/240V |
|||
* Specifications and photos are subject to change without prior notice.
Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.
As one of the most professional outdoor led screen manufacturers, we provide HD LED panel, perimeter display, stadium perimeter led display, perimeter led display, perimeter led screen, perimeter LED display, perimeter LED screen, led perimeter screen, led perimeter display, advertising display screen led and etc. Contact us to know more.
