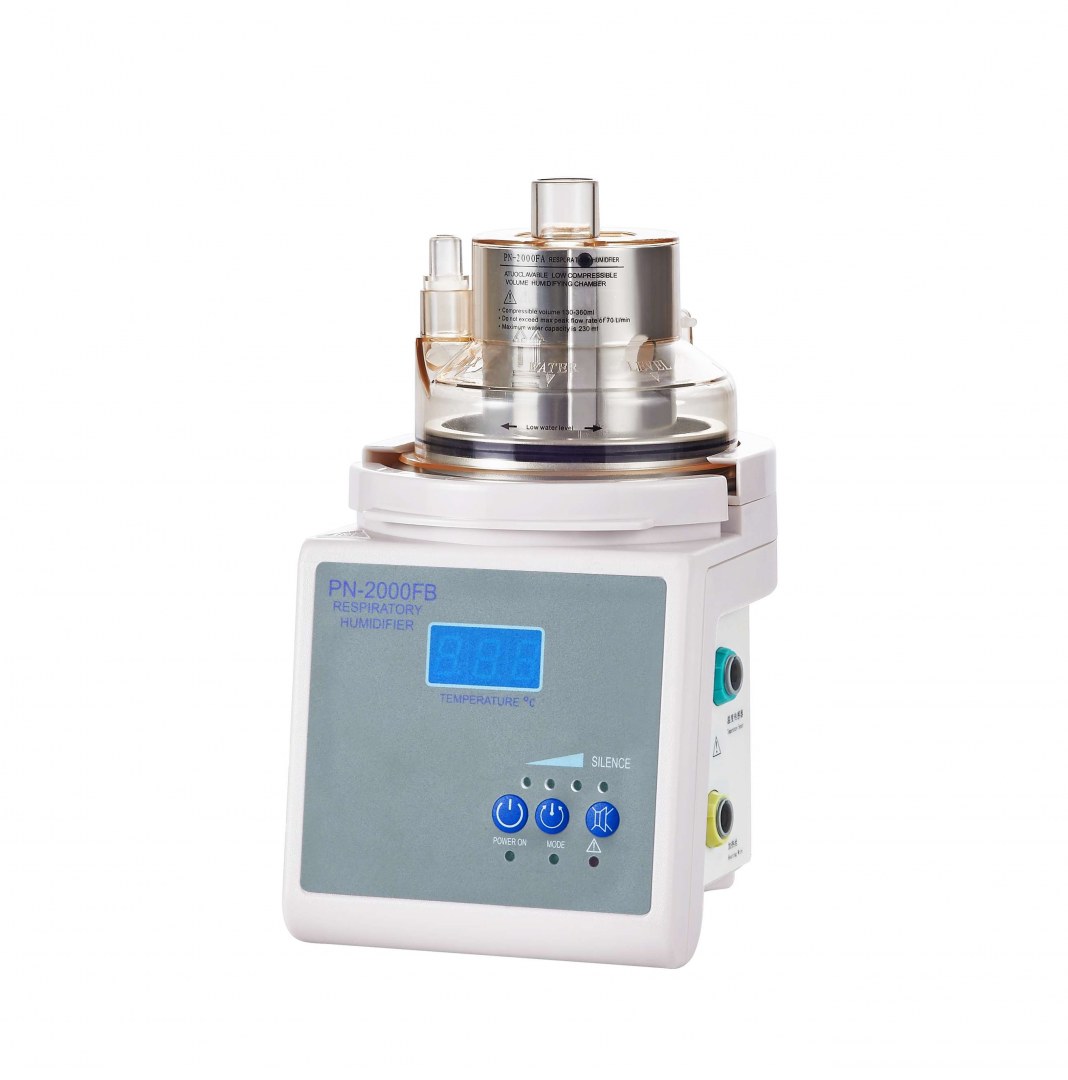

PN-2000FB Respiratory Humidifier (Support Heated Wire)
Pigeon Medical Respiratory Humidifier PN-2000FB offers an integrated solution to provide humidified and warmed gas to those patients in need of mechanical ventilation or other respiratory supports. With built in servo control feedback system and alarm system, it incorporates to monitor constantly and provide visible and audible alarm according to the proximal and distal temperature respectively.
In addition, the over-heat protection will automatically perform thermal cut-off once the temperature of the heating plate excess 95oC to avoid any unexpected circumstances. PN-2000FB also supports heated wire on both disposable and reusable breathing circuit, ensure to avoid temperature loss and water condensation while the medical gas travels through the circuit.
Working Principle of PN-2000FB Respiratory Humidifier
Pigeon Medical Respiratory Humidifier PN-2000FB is designed to use in hospital environment which can be capable with mechanical/ non-mechanical ventilation and oxygen therapy for adults. Meanwhile, it supports invasive ventilation, infant resuscitation and bubble CPAP and oxygen therapy for neonatal care.
With optional heated wire function, it matches with both disposable/reusable and heated wire/non-heated wire breathing circuit.
Features of PN-2000FB Respiratory Humidifier
Heated or non-heated wire temperature control with 3 different phases independently
Match with all kind of ventilators
Provide different connectors for pediatrics and adults breathing circuit
Built-in alarm function
Provide high quality aluminium clamp and slot plate for the blender to safely hang on the trolley
Specification of PN-2000FB Respiratory Humidifier
Model |
PN-2000FB |
Power Source |
AC 220V, 50-60Hz (Optional: AC 110V, 50-60Hz) |
Heated Plate |
150W |
Thermal Cut Off |
95±6℃ |
Display |
Three digit, 0.56 inch, 7 segment Led |
Temperature Monitoring |
0-75℃ |
Max-temperature of Heated Plate |
85℃ |
Heated Wire |
AC 23V 60W, 50-60Hz |
Power Rate |
220W |
Alarm |
Yes |
Temperature Control Setting |
Heated Wired Mode: |
Non-heated Wired Mode: |
|
Range |
10-70oC, Accuracy: ±2℃ (In 25-45℃ temperature range) |
Practical Application of PN-2000FB Respiratory Humidifier
01.Mechanical ventilation
02.HFNC
03.Bubble CPAP
04.NCPAP
05.Oxygen therapy
If you want to buy high quality hospital respiratory equipment, please contact us.
