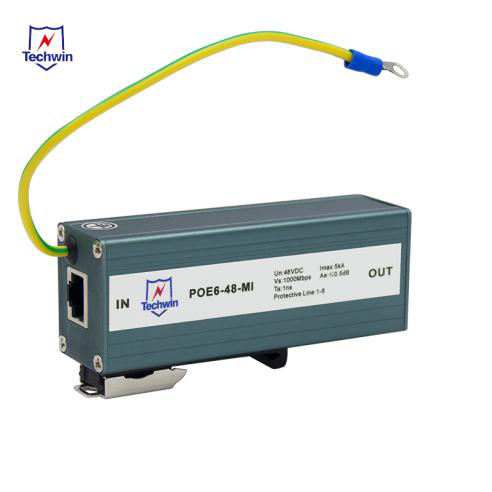

POE Surge Protector (Gigabit)
Détails
Chine (Rép. pop) Informatique
Informatique

POE Surge Protector (Gigabit)

Quantité : 2000pcs pe

Power over Ethernet protector is designed for POE power surge supply equipment, are widely used in the areas of wireless coverage, security monitoring, etc. to protect the communication equipment's SPD POE port line from the impact of lightning Electromagnetic pulse, lightning electromagnetic pulse, switching overvoltage.

Features of SPD for Ethernet Power System POE6-48 POE6-48-24

Multi. Protection circuits, Gas-Tube+ TVS technology

Dual protection in Common module and different module

TVS array technology, low capacitance

Multi-Strike Capability

Application Of SPD China for Ethernet Power System POE6-48 POE6-48-24

POE6-48 POE6-48-24 is designed for Ethernet device not to be spoiled by lightning over-voltage, induced over-voltage, and static discharge.

CAT6, CAT5e, and CAT5 compatible

802.3af

10/100/1000 Base-T Gigabit Ethernet protection

LAN, FDDI, CDDI, ATM, WLAN

PDH, SDH, SPDH

Industrial control

Technical Parameters of Ethernet Surge Protector POE6-48 POE6-48-24

Model

POE6-48

POE6-48-4

POE6-48-8

POE6-48-24

Lightning projection

zone(LPZ)

2

Standards Compliance

IEC61000, EN60950, GB/T18802.21-2002, TB/T2311-2002

According to IEC61643

III

According to DIN

VDE6075 Part6

(Draft 11.89) A1, A2

D

Max continuous

operating voltage Uc

68VDC

Nominal working

voltage(Un)

48VDC

Nominal discharge

current (8/20µs) In

3KA

Max discharge current

Imax (8/21µs) Imax

5KA

Voltage protection Level

@C2(8/20µs) Up

≤190V(L-L)≤500V(L-G)

Voltage protection Level

@C3(1kV/µs) Up

≤145V(L-L)≤600V(L-G)

Rated load current IL

200mA

Limiting Voltage

(10/700µs)

≤20V

Cut-off Frequency fG

250MHz

Response time tA

(L-N/N-PE)

1ns

Protection line

1/2, 3/6, 4/5, 7/8

Mounting

Be Installed between protected equipment and signal line

Adapt Transmission rate

1000Mbps

Transmission standards

100BaseT/ 1000BaseT/1000Base TX, CAT5/CAT6, POE

Dimension

104H)×58(W)×28(L)mm

95 (H)×85(W)×48(L)mm

190 (H)×85(W)×48(L)mm

482 (H)×86(W)×44(L)mm

Interface form

RJ45

IP code(IEC EN 60529)

IP20

Error rate

≤10-12

Material/color

Aluminum/Blue

Insertion loss

≤0.1dB

Working conditions

Temperature: -40 to 85℃, Relative humidity: ≤95％

If you want to know more kinds of poe lightning arrester and ethernet arrester, please visit our website.

As one of lightning protection companies, we will do our best to meet all the needs of customers.
