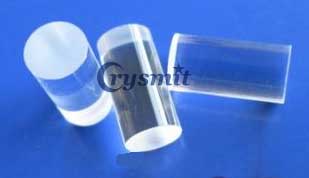

Polarization Rotator
Quantité : 999
Polarization Rotator offer 45deg or 90deg rotation at a number of common laser wavelength, the optical axis in a polarization rotator is perpendicular to the polished face of the optic. The result is that the orientation of in put linearly polarized light is rotated as it propagates through the device.

|
Attribute
|
Specification
|
|
Material
|
Crystal Quartz
|
|
Typical Diameter (Φmm)
|
10.0, 12.7, 15.0, 20.0
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2
|
|
Wavefront Distortion
|
λ/4@633nm
|
|
Wavelength Range
|
440-1600nm
|
|
Rotation Accracy
|
<5 arc min</div>
|
|
Parallelism
|
<3arc second</div>
|
|
Surface Quality
|
20/10
|
|
Clear Aperture
|
Central 90%
|
|
Coating
|
<0.2% @wavelength</div>
|
|
532nm
|
632.8nm
|
1064nm
|
