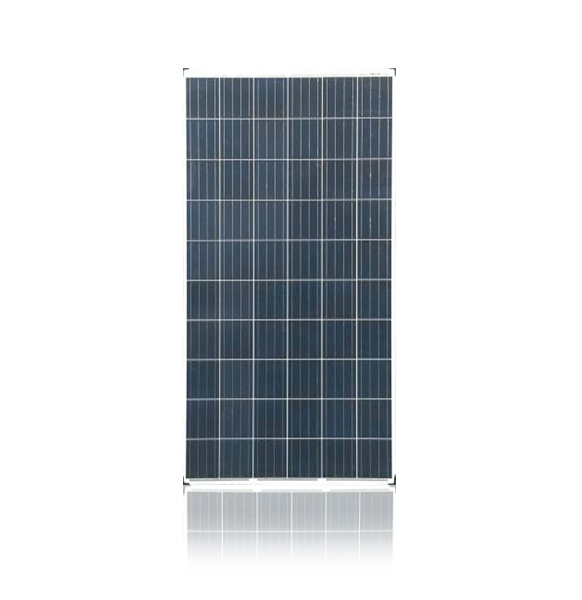

Polycrystalline solar panel 245w-270w

Power：245~270P Tile

Size：1640x992x40 Millimeter

Weight：19.6(43.1ibs) Kilogram

Product feature

solar panel Model: TN60P

KEY FEATURES：

Highest power output：270W ;

Material & workmanship warranty：10 years

Certified by TUV Rheinland：PID Free;

Linear power output warranty：25 years

1 Positive power tolerance: 0-+3%

2 Robust design: Certified to withstand up to 2400 Pa wind load

3 and up to 5400 Pa snow load •Proved high reliability built on dozens of projects

4 Four busbar cell: Improve the efficiency of modules

PERFORMANCE WARRANTY

Polycrystalline Solar Cell Modules

a: During the first year, TOPSKY ENERGY guarantees the nominal power output of the product will be no less than 97.5% of the labeled power output.

b: From year 2 to year 24, the nominal power decline will be no more than 0.7% in each year; by the end of year 25, the nominal power output will be no less than 80.7% of the labeled power output.

ELECTRICAL PARAMETERS

Model: TN60P

Maximum Power Pmax/W: 255 260 265 270

Operating Voltage Vmpp/V: 30.6 30.7 30.8 30.9

Operating Current Impp/A: 8.36 8.51 8.62 8.74

Open-Circuit Voltage Voc/V: 37.7 37.8 37.9 38.0

Short-Circuit Current Isc/A: 9.06 9.16 9.25 9.33

Module Efficiency ηm %: 15.7 16.0 16.3 16.6

Power Tolerance: 0-+3%

Temperature Coefficient:

Pmax: -0.40%/℃,Voc: -0.31%/℃,Isc: +0.06%/℃

Noct: 45±2℃

* STC: 1000w/㎡,25℃,AM 1.5

OTHER PARAMETERS:

Cell Type: Poly Crystalline

Cell Dimensions: 156*156mm(6inch)

Cell Arrangement: 60(6*10)

Weight: 18.5kg(40.8lbs)

Module Dimensions: 1640*990*35mm(64.6*39.0*1.4inch)

Cable Length: 900mm(35.4inch)

Cable Cross Section Size: 4mm²(0.006sq.in)

Front Glass: 3.2mm High Transmission, Tempered Glass

No.of Bypass Diodes: 3/6

Packing Configeration (1): 30pcs/Pallet, 840pcs/40hq

Packing Configeration (2): 30pcs+5pcs/Pallet, 910pcs/40hq

Frame: Anodized Aluminium Alloy

Junction Box: IP65/IP67
