Polyester Conveyor Belt (EP BELTS)
Quantité : 100000M Prix : 10~50USD/M
Specifications
1. Since 2005
2. OHSAS 18001: 1999
3. ISO9001: 2008
4. ISO14001: 2004
5. 20000000 meters/year

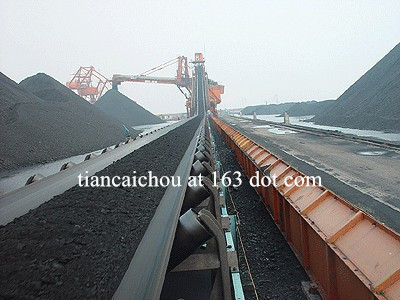

Polyester conveyor belts, also called EP conveyor belts, whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft. The belts have the characteristics of low elongation in warp and good trough ability in weft ,good water resistance, good wet strength, no mould, suitable for medium, long-distance and heavy-load transportation of materials. Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.
Specification and technical data of multi-ply polyester conveyor belt:
|
Fabric type |
Fabric structure |
Fabric |
Ply thickness (mm/P) |
Strength series(N/mm) |
Cover thickness (mm) |
Width |
Length |
||||||
|
Warp |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Lower |
|||||
|
Polyester |
Polyester |
polyester |
EP-80 |
0.80 |
160 |
240 |
320 |
400 |
480 |
2.0~8 |
0~4.5 |
400~500 |
<=300</p> |
|
EP-100 |
0.80 |
200 |
300 |
400 |
500 |
600 |
|||||||
|
EP-125 |
0.85 |
250 |
375 |
500 |
625 |
750 |
|||||||
|
EP-150 |
0.90 |
300 |
450 |
600 |
750 |
900 |
|||||||
|
EP-160 |
0.90 |
320 |
480 |
640 |
800 |
960 |
500~2500 |
||||||
|
EP-200 |
1.05 |
400 |
600 |
800 |
1000 |
1200 |
|||||||
|
EP-250 |
1.25 |
500 |
750 |
1000 |
1250 |
1500 |
|||||||
|
EP-300 |
1.35 |
600 |
900 |
1200 |
1500 |
1800 |
|||||||
|
EP-350 |
1.50 |
- |
1050 |
1400 |
1750 |
2100 |
600~2500 |
||||||
|
EP-400 |
1.80 |
- |
- |
1600 |
2000 |
2400 |
600~2500 |
||||||
|
EP-500 |
2.00 |
- |
- |
2000 |
2500 |
3000 |
|||||||
Adhesion and elongation of the belt:
|
Belt carcass |
Adhesive strength |
Elongation |
|||
|
Between plies N/mm |
N/mm Between rubber and carcass |
Longitudinal %>= |
Longitudinal elongation at reference load %<=</p> |
||
|
Rubber thickness |
Rubber thickness |
||||
|
EP canvas |
>=4.50 |
>= 3.20 |
>=3.50 |
10 |
4.0 |
Cover properties of the belts:
|
Cover grade |
Tensile strength |
Elongation |
Abrasion |
Change Rate of tensile strength and elongation after aging |
|
|
Mpa |
kgf/cm2 |
% |
mm3 |
% |
|
|
Heavy(H) |
24 |
240 |
450 |
120 |
-25~+25 |
|
Medium(M) |
18 |
180 |
400 |
100 |
-25~+25 |
|
Light(L) |
15 |
150 |
350 |
200 |
-30~+30 |
Personne à contacter : Eric Chou, 86 576 83117319
