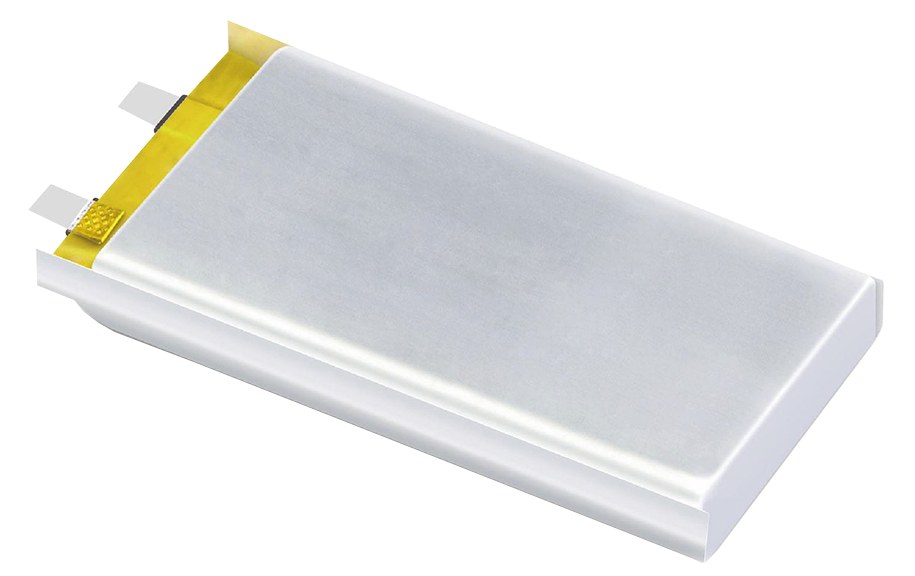

Pouch Cell (NMC, LiFePO4)
Pouch Cell (NMC, LiFePO4 China)
Featuring high energy density, ACE Lifepo4 Pouch Cell is mainly used in digital, medical products, LEV and ESS, etc. The lto pouch cells battery made by ACE has many good features, which is worth choosing.
The type of rechargeable lithium cell is high-quality, lightweight, and has bulk capacity.
Lithium Battery Cell Pouch For Sale
The details of the lithium ion pouch
cell are provided by ACE.
|
PN# |
F08141240 85E2240-25Ah |
F14142154 E6E5156-33Ah |
|
|
Typical Capacity(Ah)@0.2C |
25 |
33 |
|
|
Nominal Voltage(V) |
3.2 |
3.2 |
|
|
Dimension(mm) |
8.2±0.3 * 141±2.0 * 241±2.0 |
14.3±0.3 * 144.5±1.5 * 154.5±1.5 |
|
|
Thick * Width * Height(not include terminals) |
|||
|
Weight(g) |
535g |
625g |
|
|
Internal Resistance(mΩ) |
≤1.2mΩ |
≤1.5mΩ |
|
|
Discharge |
Standard |
0.5C |
0.5C |
|
Continuous discharge |
3C |
1C |
|
|
End Voltage(V) |
2.5 |
2 |
|
|
Charge |
Standard |
0.2C |
0.5C |
|
Max. |
1C |
1C |
|
|
End Voltage(V) |
3.65 |
3.65 |
|
|
Temperature |
Charge |
0-45 |
-60 |
|
Discharge |
-20-60 |
-20-55 |
|
|
Cycle Life |
3500cycles |
6000cycles |
|
If you want to know more details of pouch cell vs cylindrical, please visit our website.
As one of lithium ion battery manufacturers china, we will do our best to provide more high quality products for customers, if you have needs, please contact us.
