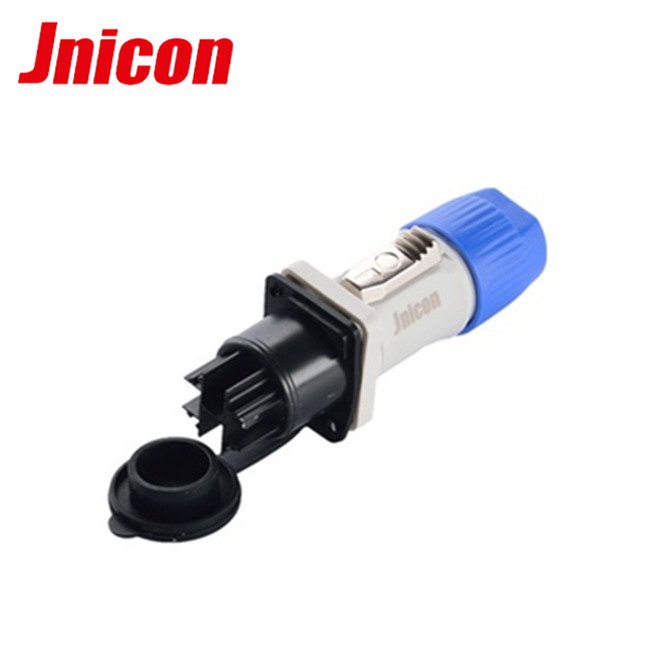

Powercon plug connector
Quantité : 100 Prix : 11 yuan /each
Product Description
1. It's made of high performance engineering plastic.
2.Locking 3-pin cinnector of the device,like middle,straight & pre-adaptation.
3.Unique blue-gray separable power input and output.
4.Fast and easy locking system.
5.Widely used in Audio,Video & Power equipment.
|
Specification |
|
|
Current rating: |
20A |
|
Voltage rating: |
500V |
|
Contact resistance: |
<5MΩ</span> |
|
Insulation resistance: |
>500MΩ |
|
Connecting mode: |
Latching lock |
|
Cable specification : |
2.5mm²~4mm²/14~12AWG |
|
Durability: |
≥500 mating & unmating cycles |
|
Temperature rating: |
-40℃~80℃ |
|
Flammability rating: |
UL94-V0 |
|
20A contact temperature below 30℃,25A contact temperature below 40℃,30A contact temperature below 50℃ |
|
|
Application industries: |
|
|
- LED screen |
-Audio-visual equipment |
|
- Stage equipment |
- Street lamp lighting |
|
- Medical equipment |
- Server |
|
- Solar energy equipment |
- Ship equipment |
|
- Electric power equipment |
- Vehicle equipment |
|
- Communications equipment |
- Heavy machinery |






Company Information
Shenzhen Jnicon Technology Co., Ltd. was engaged in design and production of waterproof connectors in 2012 and was registered as a general taxpayer in Feb. 2014. Our company specializes in R&D, manufacture and sales of waterproof connectors and industrial connectors.
14 series and more than 1,000 varieties of products are widely applied to the fields such as outdoor LED (street lamp, display screen, lighting), communication, automation, new energy, marine electronics, medical equipment, global positioning system peripherals, automotive electronics, etc.


Packaging & Shipping
•Normally,our price is based on our box packing for splice connectors
•Customized packing is welcome,MOQ of printing customized box is1000 pcs/model for splice connectors
•You may choose our shipping partner or your own partner for splice connectors
•100% T/T in advance is required after confirming the order for splice connectors

FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer
Q2: How long is your delivery time?
A2: Usually it is within 3 working days if goods in stock. Or 7working days if no stock
Q3: Do you provide samples? Free or extra?
A3: Yes, we could offer samples for free charge, but do not pay the cost of freight.
Q4: What is your payment term?
A4: Payment <= 1000USD, 100% in advance. Payment >=1000USD,30% T/T in advance, balance before shippment.
