Precast Concrete Panel Production Line
As the main component in precast concrete components, the assembly part, connection, combination of cast-in-place reinforced Concrete structure, PC component based on component processing unit factory production of finished Concrete members.
One machine can not only produce one size, it depends on the machine designing.
The advantages and characteristics of Precast Concrete Production Line:
1. When making precast concrete panels, it can reduce resources, energy consumption and environmental pollution.
2. It can improve the quality of building product, engineering and safety performance (seismic resistance).
3. Speed up the schedule of construction and shorten the construction cycle.
4. Reduce labor intensity and labor cost, it is the only way to transform and upgrading of Chinese construction industry.
Main Technical Parameters Of Precast Concrete Panel Production Line
|
Item |
Parameters |
|
Model platform size (L x W x H) |
10000x3500x375mm |
|
Precast slab maximum size (L x W) |
9500x3250mm |
|
Precast slab thickness |
Laminate slab 50-80mm, solid wall 100-300mm |
|
Curing chamber precast slab number |
40
|
|
The production line floor space |
About 3000-5000 square meter |

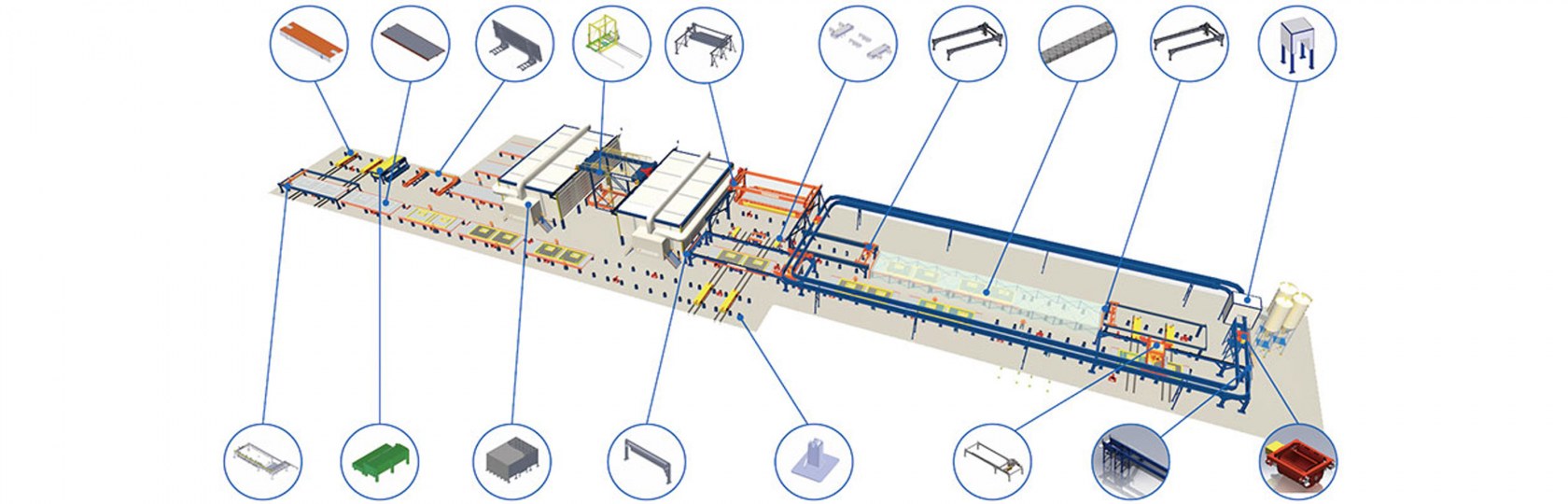

Process Flow Of Precast Concrete Panel Production Line
Model platform, side model cleaning oil——The robot side model placement——Rebar mesh placement——Rebar truss placement——Rebar placement and tying——Concrete placement——Galling——Thick——Maintain——Laminate——Laminate oblique discharge——Laminated wall——1800 turnover——Concrete placement——Laminated wall assemble, thick——Maintain——Oblique discharge
jinggong science and technology is a professional roll forming machine company, Jinggong provides rollforming machines, sandwich panel machinery, etc.
