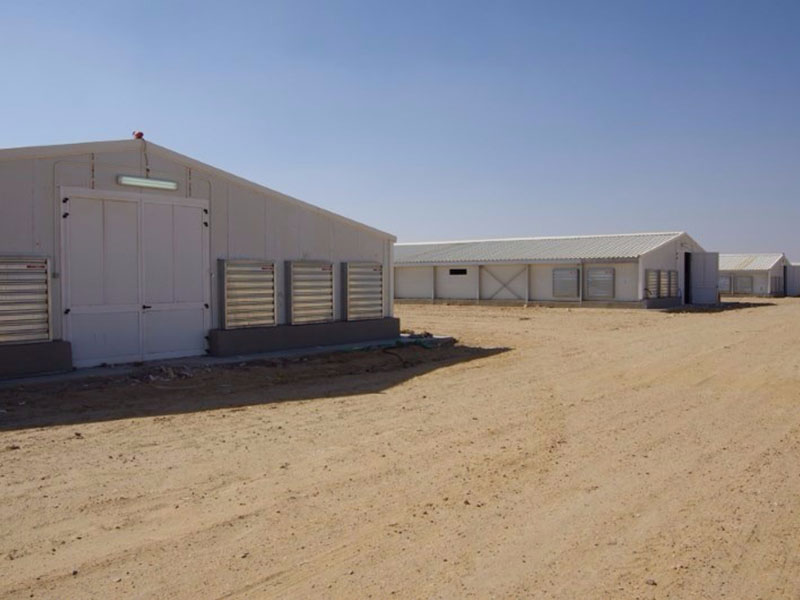

Prefab Agricultural Buildings
As a classification of mobile housing products, The Agricultural prefab house has been widely used in livestock and poultry sheds, barns, grain, animal feed and other agricultural materials storage. Due to the product mainly steel square tube and C section steel purlin as the skeleton of the product so there are certain limitations in the span and height of the single. But it also has the following advantages:
In factory design and production, the main structure is connected by bolts, standardized production, accurate component size, a small error.
Mechanized processing, component standards with interchangeability.
The material quality is light, easy to assemble and disassemble.
The manufacturing and installation cycle is short, and the number of rooms can be reduced or increased without changing any original materials during the turnover according to the needs of customers in the process of disassembly, which is convenient for transportation.
Beautiful and durable, the product life of more than 15 years, according to the cycle of maintenance and replacement, can extend the product life of more than 10 years. One-time investment, high reuse value, low comprehensive use cost.
Product Parameters of Prefab Agricultural Buildings
Prefab T Type Prefab Farm Buildings Cow shed Prefabricated Barn Horse Stable Technical Specification
No.+A2: D29 |
Sort |
Name |
Specification |
1 |
Product Type |
Degree of Standardization |
custom-made product, design and manufacture according to clients requirement |
2 |
Size |
Length (m): |
No limited, increase expansion joint when length more than 200m. |
3 |
Width(m): |
single span should be less than 12m, an arbitrary width could make by union spans |
|
4 |
Heigth(m): |
single floor≤5m, two or three floors, average height ≤4m |
|
5 |
Roof slope: |
slope is 1: 10~1: 5 |
|
6 |
Standard equipment |
Ground channel |
Galvanized steel panle compression, thickness is 0.8mm |
7 |
Post |
Inside post is steel square pipe, material is Q235, components surface make antirust process, and decorate with color steel compression parts. |
|
8 |
Roof beam |
roof truss consist of thin sharpe steel by welding, component surface make antirust process |
|
9 |
Purlin |
C or Z section steel, size from C120~C320, Z100~Z200 |
|
10 |
Wall beam |
wall beam is Ctype steel or square pipe, material is Q235,component surface make antirust process |
|
11 |
Floor |
made of floor master beam, secondary beam and floor surface plate(plywood) |
|
12 |
Wall & roof panel |
EPS, rock cotton, fiber glass, PU Sandwich panels/ or steel sheet |
|
13 |
door |
Sliding door or rolling door |
|
14 |
window |
PVC sliding window, with steel screen. |
|
15 |
|
Electrical accessories |
Supply plan, design and construction according to relevant national norms(220V,50Hz, with lamp, switches and multi-function sockets.) |
16 |
Water plumbing accessories |
Supply plan, design and construction according to relevant national norms |
|
17 |
|
Bracing |
Steel angle, steel pipe, steel round. |
18 |
|
Gutter |
Steel sheet or galvanized steel sheet |
19 |
|
Rainspout |
PVC pipe |
20 |
|
Accessories |
Anchor bolt, high strengthen bolt, normal bolt, skylight panel, ventilators, etc. |
21 |
Design technical data |
Roof dead load |
0.3KN/sqm |
22 |
Roof live load |
0.5KN/sqm |
|
23 |
Floor dead load |
0.5KN/sqm |
|
24 |
Floor live load |
2KN/sqm |
|
25 |
Wind load |
12degree,120km/h(strengthen the steel frame when the wind is bigger than this data) |
|
26 |
Earthquake resistant intensity |
8 degree |
|
27 |
Used for temperature |
Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25) |
|
28 |
Installation |
Installation tools |
electric drill, electric hammer, spanner, screwdriver, pulling rivet etc, house installation need electric power. |
29 |
Installation efficiency |
Four skilled labor one day can erect 40m2's house body |
|
30 |
Transport |
container |
each 40ft container could load 130~150Sqm house body material |
Advantages of Prefabricated Farm Shed
Factory design and production, the main structure is connected by bolts, standardized production, accurate component size, small error
Mechanized processing, component standards with interchangeability
The material quality is light, easy to assemble and disassemble.
The manufacturing and installation cycle is short, and the number of rooms can be reduced or increased without changing any original materials during the turnover according to the needs of customers in the process of disassembly, which is convenient for transportation
Beautiful and durable, the product life of more than 15 years, according to the cycle of maintenance and replacement, can extend the product life of more than 10 years. One-time investment, high reuse value, low comprehensive use cost
Zhongtai House is a professional prefabricated steel frame modular structure manufacturer, the flat pack container building is our main product, and we can provide a daily production capacity of 200 sets, fully meeting your high-end, middle, and low-end product needs. Our house type includes container house (Flat pack container, Detachable container, Folding container), Prefab house, H beam Steel structure, and cold-formed light steel structure villa. With the modern facility located in the Handan plant, Zhongtai has the capability to manufacture 6,000 Units of container houses and 70000 sqm ( building area )prefab houses per month.
Personne à contacter : container ZhongTai, +8618514250980
