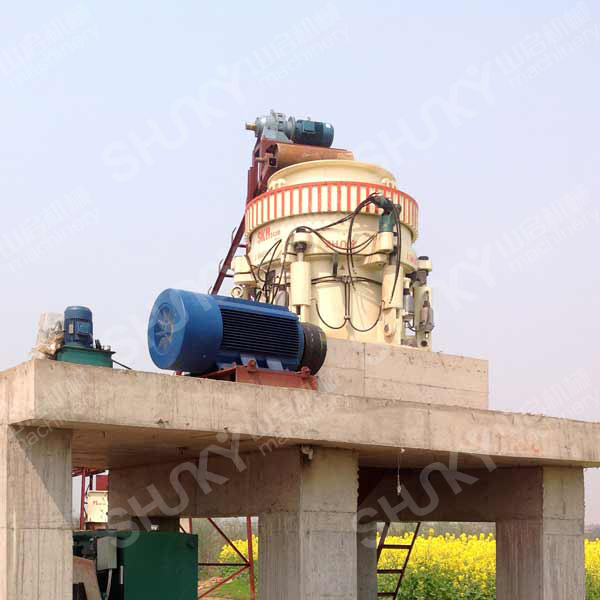

Professional SKH hydraulic cone crushers from Shunky

Product Description
SKH hydraulic cone crushers adopt the best combination of crushing frequency and eccentricity, so size of the crushed product is much smaller. Therefore, more crushing and less grinding efficiency is more significant, crushing and grinding power consumption is reduced greatly. Perfect combination of high crushing efficiency and highly efficient chamber makes larger capacity than other crushers. More materials are crushed by different layers, so size of final product is evenly cubic. Hydraulic adjustment and method for cleaning chamber make operation and maintenance much more convenient and automatic. This series of Single Cylinder SKH hydraulic cone crushers have much less trouble, and operating ratio is increased more than 85%, so the whole cost is reduced greatly.
Features
1. Materials are crushed into much smaller size, so more crushing and less grinding efficiency is realized. The crushing capacity in the following process is increased, and the system power consumption is reduced.
2. Larger capacity and smaller size of final product reduce cyclic load, so chute of vibrating screen and belt conveyor are worn slightly, and power consumption of belt conveyor is reduced too.
3. Spare parts can be easily changed, so downtime is shortened.
Technical Data
Model

MAX. Feeding

Size

(mm)

Minimum Discharging

Size

(mm)

Main Motor

(KW)

Capacity(t/h)--Open cycle,

closed discharging size(mm)
9 13 16 19 22 26 32 38 45 52 64 89
SKH75C 160 22-32 75-90 110 120 130 150
SKH75M 130 13-26 65 85 95 105 110
SKH75F 50 9-19 40 60 80 90
SKH160C 180 22-38 132-160 185 195 215 250
SKH160M 140 13-32 90 115 135 160 180 200
SKH160F 60 9-22 60 80 100 120 140
SKH240C 260 26-51 160-250 250 290 340 365 395
SKH240M 150 16-38 125 140 165 220 275 330
SKH240F 80 9-22 70 90 115 130 150
SKH360EC 315 38-64 250-320 555 649 766 798
SKH360C 230 26-52 366 430 468 629 657
SKH360M 205 22-45 266 299 348 393 451
SKH360F 180 16-38 188 212 234 267 305 337
SKH440EC 450 38-89 400 890 1179 1380 1475 1566
SKH440C 350 31-64 800 850 1100 1288 1398
SKH440M 320 25-52 612 735 815 990 1137
SKH440F 268 19-45 376 412 500 620 725 867
