Protection Screen

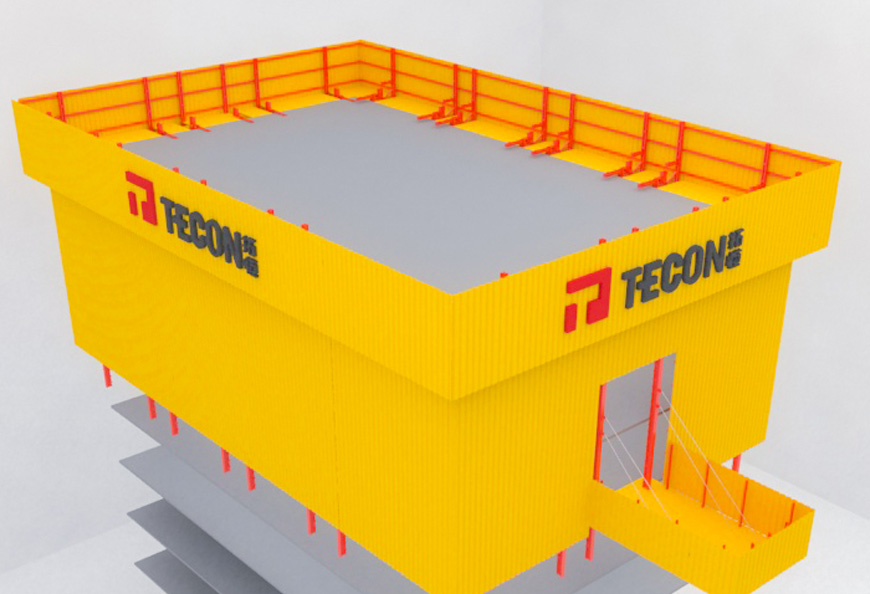

TECON safety screen for construction is a modular designed facade protection system, automatic climbing by mobile hydraulic cylinder system. It provides a maximum of three floors coverage with optional numbers of the platform. Safe, efficient and weather regardless operation condition is hence guaranteed at your minimum cost.

Feature of safety screen construction

Modular unit design means universal utilization among different projects.An embedded anchor system ensures firm attaching to the concrete structure.Customized storey heights and platform numbers meet different projects requirement.Independent self-climbing system saves crane usage during the whole phase protection for site crews.Full sealed outer protection leads to a perfect façade appearance, while it also ensures safe operating conditions.

Specification of Protection Screen

1-meter platform width from the structure.

1 to 4 floors platform available in specific project.

±10°backwards, forwards, right and left tilting angle.

2.5 to 3.5 floors coverage height available, maximum 14 meters.

Rail-guided platform climbs through climbing shoes attached to the concrete.

0.75kn/sqm loading capacity of the platform during formwork operation and concrete maintenance.

Related Products of Protection Screen

Ringlock Scaffolding

Jump formwork CB240

Self-climbing platform SCP

Self-climbing formwork TSC50/100

At TECON, we provide beam shuttering, slab formwork system and etc. We provide a one-stop service supporting you from technical planning, budgeting through to project completion.
