Protection Screen

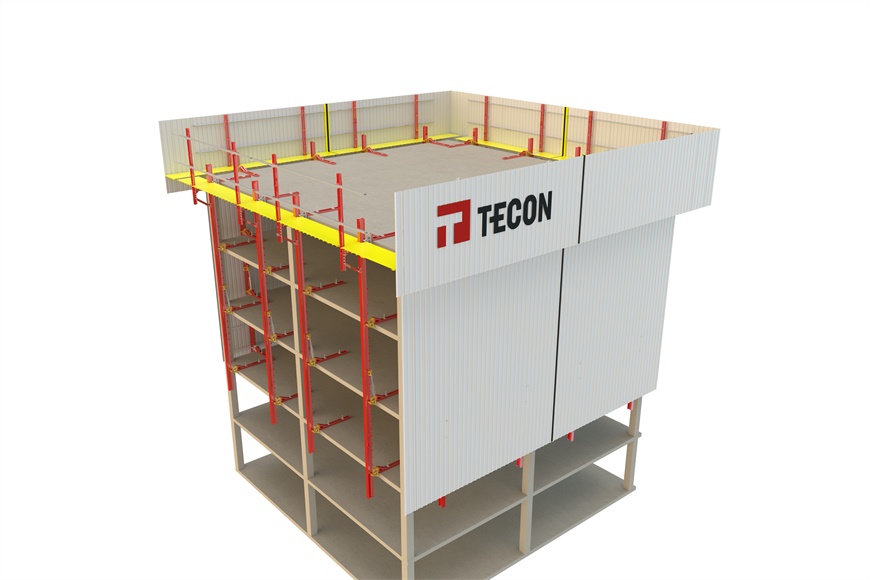

TECON safety screen construction is a modular designed facade protection system which can climb automaticly via your high rise building by mobile hydraulic cylinder. It provides a maximum of three floors coverage with optional numbers of the platform. Therefore, it garantees a safe, efficient and weather-shielded working space for your site crews in hight position.

Features of Protection Screen

Independent self-climbing system saves crane usage during the whole construction phase

Full sealed facade protection ensures the safe operation condition of site crews

Customized storey heights and platform numbers meet different projects requirement

Embedded anchor system ensures firm attaching to the concrete structure

Universal utilization among different projects

Specifications of safety screen for construction

Climbing device: Hydraulic cylinder

Climbing speed: 25 min/floor/unit

Platform width from the structure: 1 m

Platform quantity: 1~4 floors

Floor coverage height: 2.5 to 3.5 floors, 14 m height maximum

The degree of backwards, forwards, right and left tilting angle: ±10°

Load capacity of the platform during formwork operation and concrete maintenance is 0.75 kN/sqm

Standard unit size: 7 m with 2 pcs brackets

Applications of Protection Screen

Façade protection and work platform for high rise building with regular shape layout

For more information about formwork engineering, please feel free to contact us!
