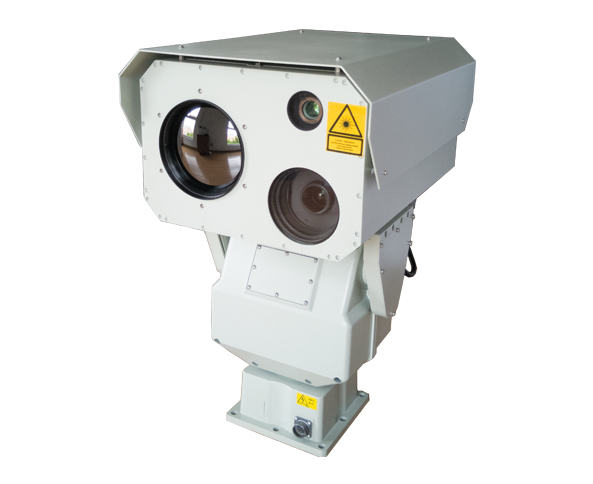

PTZ Dual Band Infrared Camera

WLS-DTE Specification

Category

Title

DTE3075Z

DTE3105Z

DTE3155Z

Detection

Vehicle

7km

9km

13km

Human

2.5km

3.5km

5km

Fire

3km

4km

6km

Thermal

Lens

25~75mm

25~100mm

30~150mm

Resolution

384*288 (640*512 optional)

NETD

50mk （20mk optional）

Sensor

VOx sensor/7.5～14μm

Visible

Surface

1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch

Resolution

2 mega pixels, 1920 x 1080

illumination

0.05Lux high sensitive color, 0.052Lux black and white

Encoding

H.265/H.264/MPEG4/MIPEG

Bit Rate

32Kbps-16Mbps, 60Hz 30 frames/second

Lens

8～320mm

8~500mm

15~528mm

(750mm Optional)

Aperture

Support

Others

2X, 4X digital amplification; NUC Correction; 6. Hot-point analysis

Housing

Material

Integral aluminum alloy housing

Protection Level

IP66

Others

Wipers, Window Clearing, Lens Servo, other module optional

Interface

Network

RJ45. 10/100 Base-T adaptive (integrated video output and RS485 control)

Protocol

TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP

Power

AC/DC24V

Environment Parameter

Working Temp

- 25°C ~+60°C (- 40° C Optional)

Storage Temp

-45°C ~+70°C

Humidity

<90%</span>

Others

Seismic resistance: 0.2g; Impact resistance: 15g

Pan/Tilt

Angle

Pan: 0 - 360° ;Tilt: -90°～+90°(-70°/+70° Optional)

Speed

Pan: 0.01～60°/S，Tilt: 0.01～30°/S

Others

Accuracy: ±0.1°; lens focus speed adaptive function

Others

Weight

≤40kg (PT included)

Power Consumption

120W

Function

Basic

Cruise Line-Scan/ Pre-positioning/Automatic Cruise Route /Automatic Scanning Route/ Power-off memory/Azimuth Information/ Zero correction/

Optional

24hr cruise/Temp Compensation/Remote Maintenance

Intelligence (optional)

Area intrusion detection/Border-Crossing intrusion detection /Panoramic stitch/Radar link/Auto-tracking/Multi-scene group cruision/3D zooming/positioning selection;
