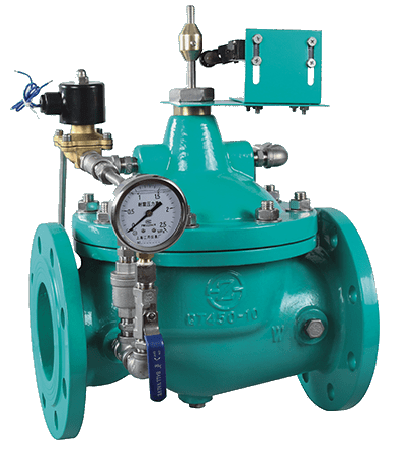

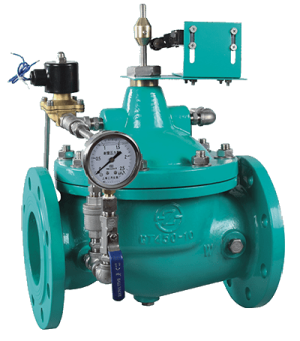

Pump Control Valve

Quantité : 500000 Pie   Prix : US $1 - 3,000 / Set

This valve is installed at the outlet of the water pump. It can prevent the backflow of the medium, linked with the water pump, and can effectively prevent the water hammer phenomenon.

Festures of pump flow control valve

Slow closing effectively prevents water hammer.

Stop pump stable and save energy

Full port, small fluid resistance

Completely Automatic Operation

Pump Control Valve Working Principle

When the pump is started, the solenoid pilot valve is fully opened after electrification, and adjust the needle valve to the appropriate opening degree, upstream water enters the main valve control room through the pipe and flows out through the solenoid pilot valve, at this point, the pressure of the main valve control room keeps the main valve open and at the appropriate opening degree to keep the normal water supply downstream. When the water pump stops working, the solenoid pilot valve closed after power is cut off, the main valve control room stops to drain, the pressure of the control room rise, the main valve begins to close. When close to 90% position, the upper routing switch of the main valve outputs the stop signal and the pump stops running. At this point, the downstream backwater enters the main valve control room through the pilot pipe, the pressure of the control room increases to close the main valve.

Pump Control Valve Installation and Commissioning

The water pump pressure control valve shall be installed at the outlet of the pump and shall be installed on the pipeline of the one-way flow of the medium. It does not need other devices and energy except using solenoid pilot valve control. For specific use, please consult ZECO Valve Group.

Pump Control Valve Material and Standard

Size Range: 2"~24"

Pressure Rating: 10bar ~ 25bar

Face to Face Dimensions: AMSE B16.10, EN558-1

Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2

Coating: Fusion Bonded Epoxy Coating

Inspection and Test: ISO 5208 / EN 12226-2

Part

Material

Standard

Body

Ductile Iron

EN 1563/DIN 1693

Bonnet

Ductile Iron

EN 1563/DIN 1693

Trim

Stainless Steel 431

EN10088-1/ASTM A959

Seat

Stainless Steel 431

EN10088-1/ASTM A959

Diaphragm

EPDM / NBR

ISO 4633

Pilot Valve

CuZn39Pb1 / C37000

EN12167/ASTM B135

For the materials options not listed, consult factory.

ZECO manufactures valves in more than 50 different alloys.

If you want to know more details of pump control valve operation and pump control valve function, please visit our website.

As a water valve supplier, we can offer kinds of water valve for sale, if you have needs, please contact us.
