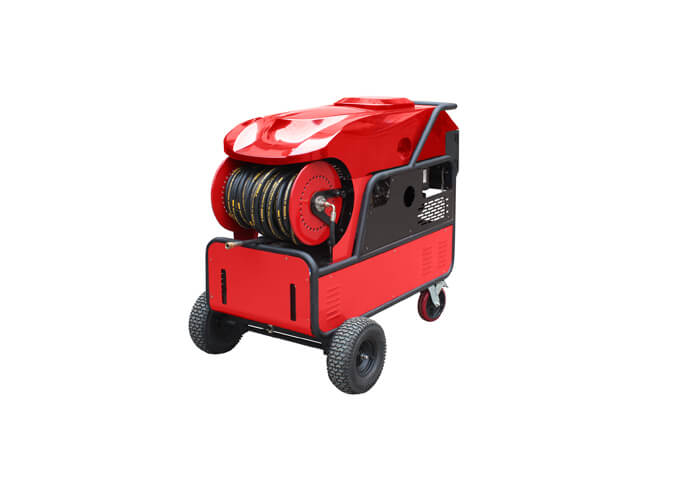

Pushcart Type High Pressure Water Mist Fire Extinguishing Device
One-button start/stop, real-time pressure display and foam ratio adjustment can be realized on the panel. In addition to an electric start, the engine also has A pull rope recoil start, reliable and fast operation, can effectively extinguish class A, CLASS B, class C and electrical fire. Applicable scenarios: tourist attractions, rail transit, cultural relic units, fire stations, oil storage, confidential room, etc.
Parameters of Pushcart Type High Pressure Water Mist Fire Extinguisher
|
The Product Type |
Water mist gun |
Product model |
QXWL15.5/22BQ-T125 |
|
Prime Mover Power |
23HP |
Prime mover type |
Gasoline engine |
|
Outside The Profile Size |
1350mm×810mm×1200mm(Length x width x height) |
||
|
Liquid Storage Tank Volume |
125L (water 110L, foam 15L) |
The length of the hose |
52.7m |
|
Rated Outlet Pressure of Pump Set |
20 MPa |
Rated flow of pump set |
22 L/min |
|
Water Spray Rated Working Pressure |
15.5 MPa |
Water spray rated working pressure |
15.5 MPa |
|
Rated Spray Flow Rate of Water Mist |
22 L/min |
Water spray-rated flow rate |
22 L/min |
|
Fine Water Mist Range |
12 m |
Water spray range |
18 m |
|
Effective Spray Time of Fine Water Mist |
6 min |
Effective spray time of water mist |
6 min |
Features of Pushcart Type High Pressure Water Mist Fire Extinguishing Device
01
Have the ability to quickly fight the initial fire.
Mobile high-pressure fine portable water mist fire fighting system can bring its own water and foam liquid. For small initial fire, it can quickly extinguish the fire or implement fire extinguishing with other fire fighting equipment.
02
High pressure fine water mist uses high performance fine water mist spray gun.
Which can realize the rapid conversion of dc, spray and foam mixing three modes. It can adjust the conversion according to the actual situation of the fire site to meet the needs of the actual situation.
03
Water mist is not conductive, and will not cause flame splash in the fire extinguishing process.
And can reduce the proportion of oxygen in the air, so as to achieve the purpose of faster fire extinguishing.
Now the price of explosion proof devices is low, if you have needs to buy explosion proof electronics, please leave us a message.
