PVB Glass Laminating Machine i

S&K Safety Glass Laminating Machine is also called bullet-proof glass making machine

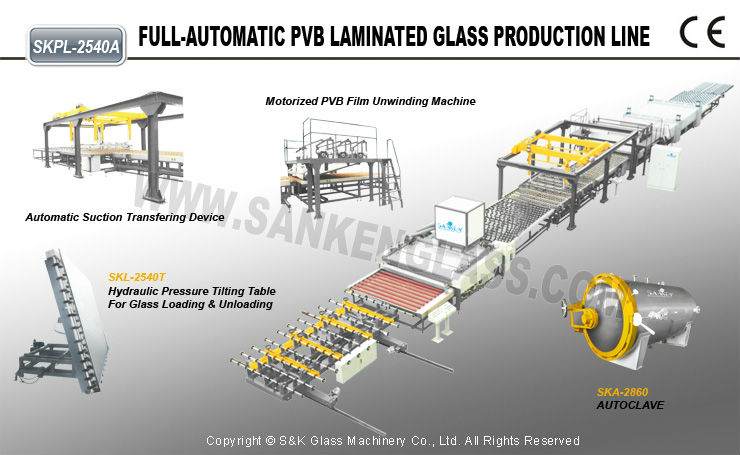

Laminating machine bullet-proof glass making machine

* Including following sections:

1. Automatic loading & unloading machine
2.Washing and drying machine

3. Transition conveying machine
4. Automatic pre-position table
5. Assembling table
6. Automatic Suction Transfering Device
7. Motorized PVB Film Unwinding Machine
8. Transition conveying machine
9. Pre-laminating and press section
10. Transition conveying machine
11. Hydraulic Pressure Tilting Table For Glass Loading & Unloading

12.Auto-clave - SKA-2860

Laminating machine bullet-proof glass making machine

achine

* PARAMENTER OF THE LINE:

Regular glass size: 2440×3660mm

Min length of processing glass: 420mm

Min width of processing glass: 300mm

Thickness range of processing: 4~80mm

Total length: appro.42800mm

Current supply: 380V, 50Hz, 3Ph

Total power: appro.160.07Kw

Feature:

The whole line is centralized controlled by industrial computer assisted in PLC and monitor display/operation.

Washing and drying machine is the core equipment of the whole line.

In the laminating room the laminating table, Automatic suction hanger , assembling table, PVB unwinding machine with film rolls driven by motor, Automatic suction hunger, convenient for processing of large and big glasses.

Pre-laminating and press section has reasonable structure and informal opening program.

The integrity is controlled in laminating room with its stable running function.

Speed regulation is frequency variable.

Auto-clave is a specialized machine for production of laminated, anti-bullet and anti-bombing glass. This machine will melt the PVB film and combined two layers or more than two layers glass by high temperature and high pressure.
