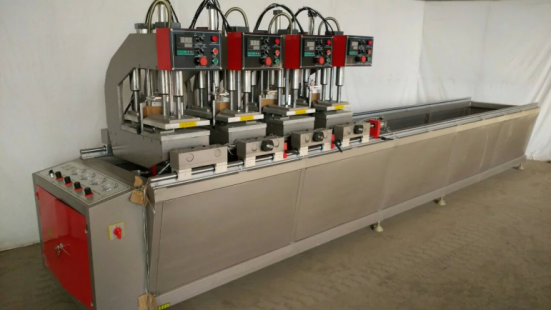

Pvc door and window equipment
Quantité : 100 Prix : 12200USD
features and functions:
1. PVC welding machine for PVC window and door is used for welding and machining of PVC door and window.It can processing all kinds of shapes。
2. The work type is swing-out,it adopts pneumatic transmission to clamp and cut the profiles.
3. The structure of the machine is simple and light,it is easy to operate and has high precision.
4.PLC control, pneumatic drive, simple operation, stable capability. Weld four-point ,three-point, two point, single point, transom, cross -transom and special angle.
5.Four heads can work simultaneously, individually and commutatively
Assembled with B to make up double-four-corner welding machine
6.This machine is made up of machine heads, frame, electric controller box,
profile-holding frame, etc.
Specification：
|
Technical Parameter: HJ02-4500*4/4*A welding machine |
|
|
Working air pressure |
0.4~0.6MPa |
|
Air consumption |
200 L/min |
|
Input Voltage/frequency |
220V/ 50 Hz |
|
Input Power |
4.5 KW |
|
Welding height |
20~120 mm |
|
Welding width |
≤120mm |
|
Welding length |
400~4500 mm |
|
Dimension |
5400mm×1100mm×1700mm |
|
Net Weight |
1500 KG |
Personne à contacter : Amy Li, +8618769793523
Bonne affaire : acheter au vendeur
