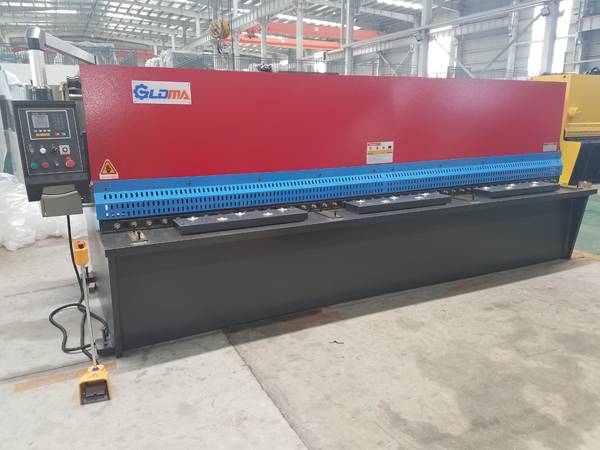

QC12K-NC Hydraulic Swing Beam Shearing Machine-ESTUN E21S System
Description
STANDARD EQUIPMENT
1. ESTUN E21S NC controller system.
2. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).
3. Steel mono-block construction.
4. DELTA frequency converter
5. Standard electrics from Schneider, France.
6. Standard oil tube connectors from EMB Germany.
7. Standard valves and oil pump from Bosch Rexroth Germany.
8. Standard main motor from Siemens Germany
9.Hydraulic and electrical overload protection
10.Light guards ensure the safety of operators during operation(optional)
11.plate shearing machine
ESTUN E21S Controller:
-
Backgauge control
-
Control for general AC motors, frequency inverter
-
X-axis intelligent positioning
-
Double programmable digital output
-
Stock counter
-
Program memory fo up to 40 steps, up to 25 steps per program
-
One side positioning
-
Retract function
-
One key backup/restore of parameters
-
Units: Mm/inch
-
Language: Chinese/English
DETAILED PICTURES
ESUTN E21S NC Controller |
|
Main motor: Siemens Germany Oil pump: Sunny America |
|
Ball screw, linear guide(optional): Hiwin Taiwan | |
Hydraulic Valve: Bosch Rexroth Germany EMB Casing tube, Germany |
|
Electric: schneider,France | |
Foot pedal: KACON South Korea |
website: http://www.gldma.com/products/qc12k-nc-hydraulic-swing-beam-shearing-machine.html
contact: 0555-2222129
company: Manshan Gilde CNC Machine Tool Co.,Ltd
address:Ma'anshan City, Anhui Province Dangtu County Bowang New Town area of new materials industrial park
