QSFP 40G 850nm 300m MPO Transceiver
Détails
Chine (Rép. pop) Habillement Enfant
Habillement Enfant

QSFP 40G 850nm 300m MPO Transceiver

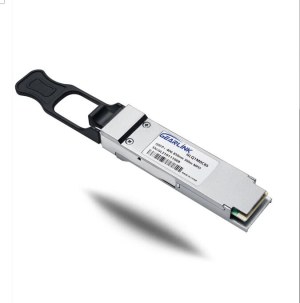

The Gearlink GLQ1M0C85 is a Four-Channel, Plug-gable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP optics full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 45.2Gbps 150m using OM3 fiber. These modules are designed to operate over multimode optical transceiver systems using 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTP connector can be plugged into the QSFP module receptacle. QSFP+ 40g SR4 is one kind of parallel mpo transceiver which provides increased port density and total system cost savings.
As a professional optical transceiver manufacturer, we also provide a range of optical transceivers, such as 400g optical transceiver, 100g optical transceivers, 40g qsfp+aatransceiver, 25g sfp28 transceiver, 10g sfp+ transceiver, sfp 40g device, etc.
Compatibility of QSFP 40G MPO Transceiver
QSFP-40G-SR4 40GBASE-SR4 MMF 850nm
QSFP-40G-SR4-S 40GBASE-SR4 MMF 850nm QSFP+
QSFP-40G-CSR4 40GBASE-ESR4 QSFP+ 850nm 300m

Technical Specification Of QSFP MPO Transceiver

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Supply Voltage

Vcc3

-0.5

-

3.6

V

Storage Temperature

Ts

-10

-

85

°C

Operating Humidity

RH

5

-

85

%

1

Receiver Damage Threshold per Lane

PIND

3.4

-

-

dBm

Commended Operating Conditions

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TC

0

-

70

°C

Power Supply Voltage

Vcc

3.14

3.3

3.47

V

Power Dissipation

Pd

-

-

1.5

W

Bit Rate

BR

1.25

10.3125

-

Gbps

As one of fiber transceiver manufacturers, we can offer sorts of fiber optic transceiver for sale, anything you need, please contact us.
