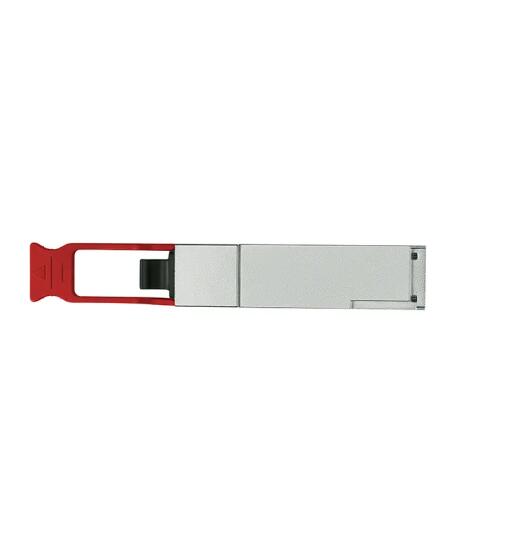

QSFP28 100G 1310nm 30km LC Transceiver
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58, and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high-performance cooled LAN WDM DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and up to 40km links with FEC interconnections.
The qsfp er4 product is designed with form factor, optical/electrical connection, and digital diagnostic interface according to the QSFP MSA. QSFP28 lc has been designed to meet the harshest external operating conditions including temperature, humidity, and EMI interference.
Compatibility of QSFP28 100G 1310nm 30km LC Transceiver
|
QSFP-100G-ER4L-S |
100GBASE-ER4 Lite QSFP28 1310nm 25km |
Technical Specification Of QSFP28 100G 1310nm 30km LC Transceiver
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Notes |
|
Supply Voltage |
Vcc |
-0.3 |
3.6 |
V |
|
|
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
|
|
Storage Temperature |
Test |
-20 |
85 |
°C |
|
|
Case Operating Temperature |
Top |
0 |
70 |
°C |
|
|
Humidity(non-condensing) |
Rh |
5 |
85 |
% |
|
|
Damage Threshold, each Lane |
TH |
5.5 |
|
dB |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
Case Operating Temperature |
Tca |
0 |
|
70 |
V |
|
|
Data Rate Per Lan |
fd |
|
25.78125 |
|
Gbps |
|
|
Humidity |
Rh |
5 |
|
85 |
% |
|
|
Power Dissipation |
P |
|
|
3.8 |
W |
|
|
Link Distance with G.652(with FEC) |
D |
0.02 |
|
40 |
km |
|
As one of fiber optic transceiver manufacturers, we can offer sorts of fibre transceiver for sale, if you have needs, please contact us.
