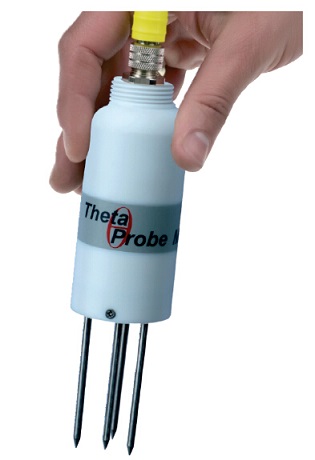

QT-ML3 Portable soil moisture/temperature meter
Product description: QT-ML3 portable soil moisture/temperature meter can be used for the measurement of moisture of various types of soil and media, and it can be used as a basic tool for on-site observation or mobile measurement.
Principle
Using FDR (frequency domain reflectometry) principle, the sensor emits electromagnetic wave with a certain frequency, the waves transmit along the probe till they reach the bottom of the probe and return to the sensor, the output voltage is recorded. Because the dielectric constant of the soil usually depends on the soil moisture, the soil water content can be calculated according to the relationship between the output voltage and soil moisture.
Feature
GPS coordination can be recorded
Record data Automatically or manually
Wireless data transmission via Wi-Fi
Recognize sensors by two-dimensional code
Automatically recognize connected sensors
Terminal memory card is up to 32G
Display real-time data and curve of recorded data
Export data to Excel for analysis
Technical parameters
ML3
Measurement range
0~100% vol
Accuracy
±1% (0~50% and 0~40℃)
Salt error
≤3.5%(50~500 ms/m and 0~40% vol)
Output
0~1V differential≈Nominal 0~60%vol
Induction area
70 mm diameter x 55 mm height
Cable length
Standard 5 m (maximum 25 m)
Power requirement
5~14V, 1s about 18mA
Output
0~2V or 4~20 mA
Operating temperature
-20℃~60℃
Size
40mm diameter x143 mm height
Protection grade
IP68
Android terminal
CPU
Quad-Core: 1.3GHz
Operating system
Android 4.2
ROM
4G
RAM
1G
Extended memory
up to 32G
Screen size
5.0 In.
Screen resolution
960*540
Operation mode
Touch screen
Screen color support
16 million
Origin: China
http://www.channeleco.com/en/
