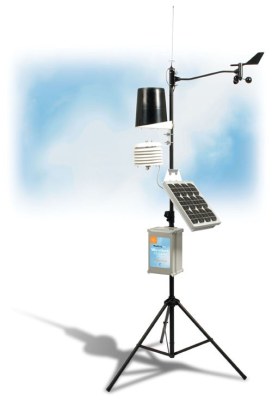

QT200 Series Automatic Weather Station
Product description: QT200 series automatic weather station can acquire wind direction, wind speed, rainfall, air temperature, relative humidity, solar radiation, photosynthetically active radiation (PAR), soil temperature, soil moisture and wetness of leaf surface in all-weather conditions. With the assistance of software and internet, the station can even realize remote data transmission and real-time meteorological observation. Also, it can realize remote control and data transmission by configuring GPRS remote control module. The whole station is composed of meteorological sensors, data logger, power system, field protective boxes and mounting bracket. Wind speed and wind direction sensors are specialized meteorological sensors with high precision and reliability. Data logger, with a user-friendly interface, has the function of data acquisition, real-time clock, data storage at regular time, parameter setting and standard communication. QT200 series automatic weather station can apply to many different domains, such as meteorology, environmental protection, agriculture and forestry, hydrology, military affairs, warehouse service and so on.
Features
Optional sensors for wind speed, wind direction, rainfall, solar radiation, PAR.
Support maximum of 10 soil moisture and temperature sensors
All sensors are with fast connection plugs, easy to install .
Three power supply modes, AC, DC or solar battery.
IP66-level protection, perfect anti-lightning, anti-interference protective measures.
Operating environment: Temperature: -40 ~ 55 ℃, Humidity: 100%, Wind resistance: ≤75m / s.
Technical parameters
Sensor
Range
Resolution
Accuracy
Wind speed
1~67m/s
0.1 m/s
±5%
Wind direction
0~360 º
0.1 º
±5 º
Temperature
-30~70℃
0.1℃
±0.3℃
humidity
0~100%
0.1%
±2%
rainfall
0~100 mm/min
0.1 mm
±4%
Solar radiation
0~1750 W/m2
0.1 W/m2
±5%
PAR
0~5000 μmol/m2/s
0.1μmol/m2/s
±5%
Soil moisture
0~100%
0.01%
±3% VWC
Soil temperature
-40~50℃
0.1℃
0.6℃
Optional configuration
QT200Basic
QT200Pro
QT200Soil
QT200Full
Wind speed& direction
√
√
×
√
Air temperature& humidity
√
√
×
√
rainfall
√
√
×
√
Solar radiation
×
√
×
√
PAR
×
√
×
√
Soil temperature& moisture
×
×
√
√
A full set of bracket
√
Solar Power System
√
√” means included, “×” means not included.
All the sensors are optional, please contact us for more information.
Origin: CHINA
