Quartz Fused Silica Windows
Quantité : 1pcs Prix : 40-200usd
Hyperion Optics supplies a wide range of custom Quartz, UV fused silica and IR fused quartz windows through UV to infrared spectrum.

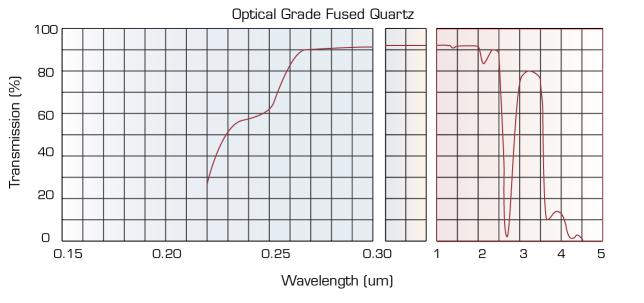

Custom quartz windows: have a useful transmission range from 0.26 visible to 2um in the infrared, which working temperature up to 1050°C, with typical AR coating applied, quartz windows are suitable for most visible to infrared applications.
Custom UV grade fused silica windows: We have access to both Corning 7980 and Chinese equivalent JGS1 both working well from 0.17um, suitable for spectroscopic application in UV range.
|
Quartz and FS Windows |
COMMERCIAL GRADE |
FACTORY STANDARD |
PRECISION GRADE |
|
Diameter Tolerance(mm) |
±0.05 |
±0.03 |
±0.0125 |
|
Center Thickness(mm) |
±0.01 |
±0.03 |
±0.025 |
|
Parallelism (Arc min) |
6 |
<3</span> |
<1</span> |
|
Cosmetic(MIL-C-13830A) |
100-80 |
40-20 |
10-5 |
|
Figure Tolerance inλ(Pow/irreg) |
3 - 1 |
2 - 1/4 |
1 - 1/10 |
|
Coating (T% avg) |
96-98% |
99% |
99.5% |
|
Materials |
Quartz, UV grade fused silica |
||
Personne à contacter : Li Boxin , +86 25 86626311
