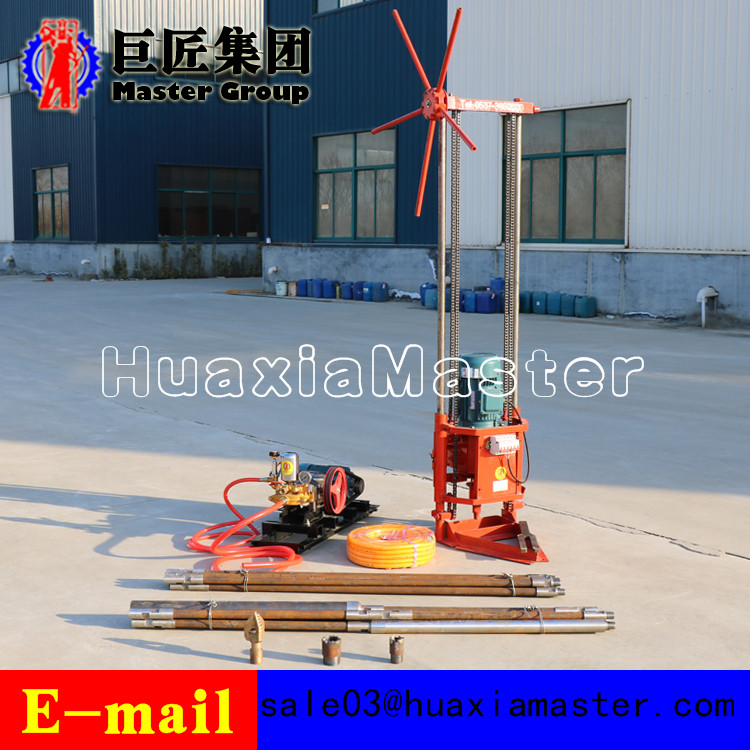

QZ-2A Three Phase Electric Sampling Drilling Rig
Quantité : 1 SET Prix : $ 4000
- Brief introduction
of QZ-2A electric sampling drilling rig
QZ-2A type three-phase sampling drill rig is a portable core sampling drilling rig, produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geological exploration.
2. Specifications of QZ-2A electric sampling drilling rig
QZ-2A electric sampling drilling rig |
|
Borehole diameter (mm) |
32-91 |
Drilling depth(m) |
layer 91:10-15m rock 91:5-10m rock 75:10-15m rock 60:15-20m rock 46:20-25m |
Drilling pipe diameter (mm) |
32 |
Rotate speed(r/min) |
185-380 |
Torque(n.m) |
80 |
Power(kw) |
3 |
Dimension(l*w*h) |
600*450*1900 |
Weight(kg) |
95 |
3. Configuration List of QZ-2A
Item |
Parameter |
Unit |
Quantity |
platform |
1 |
||
Drilling pipe |
28*1500 |
pc |
6 |
28*800 |
pc |
8 |
|
Drilling joint |
35 |
pc |
14 |
Reducing nipple |
45/35 |
pc |
1 |
Core barrel |
45*800 |
pc |
1 |
46 |
pc |
1 |
|
Reducing nipple |
58/35 |
pc |
1 |
Core barrel |
58*800 |
pc |
1 |
60 |
pc |
1 |
|
Three-wing bit |
0 |
pc |
1 |
Safety clamp |
|
hold |
1 |
Water seal |
Y 30*50*10 |
pc |
4 |
Oil seal |
17*50*10 |
pc |
2 |
Control wheel |
|
set |
1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
Personne à contacter : Kevin Shao, 008618865479507
