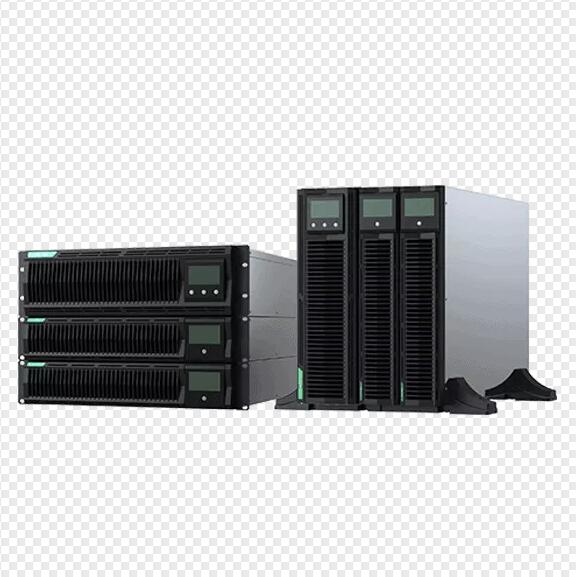

Rack Mount UPS (Li-ion Batt)
Quantité : 100units/m Prix : 500-5000USD
UPS rack mount power supply, also called uninterruptible power supply rack mount, has small size, large capacity and high efficiency that can meet the needs of high power density!
DSP series (1-80KVA)
Why choose SCU rack mountable UPS?
SCU DSP series rack mount ups power supply and lithium-ion battery combined has below great features.
Lithium-ion battery access
Bi-directional active equalization BMS control;
Perfect battery charge and discharge management strategy;
Parallel battery pack to extend backup time;
Good performance
ECO mode, efficiency 99%;
19 inch rack mount UPS design;
Isolation of cold and hot air duct, stepless speed control;
Manageability
The rack-mounted UPS power supply has LCD display, which provides easy-to-read status;
EPO remote emergency power off interface;
Built-in parallel kit, only parallel line is needed to achieve 1+1 parallel
10kva Rack Mount UPS Power Supply Specifications
|
Model |
DSP-10KVA-LI |
DSP-15KVA-LI |
DSP-20KVA-LI |
|
|
Mains input |
Input mode |
3Ph+N+PE |
||
|
Input voltage |
380V/400V/415V |
|||
|
Input frequency |
50Hz±10%、60Hz±10% |
|||
|
Input PF |
0．99 |
|||
|
Lithium ion pack |
Battery capacity |
ECM-240B10P4；240V/10AH |
||
|
Battery number |
2 |
|||
|
Back up time |
30mins |
20mins |
10mins |
|
|
BMS |
Bidirectional Active Equalization |
|||
|
AC output |
Output voltage |
220V/230V/240V；380V/400V/415V |
||
|
Output PF |
0.9 |
|||
|
Overload |
Operate 10mins with 125% load |
|||
|
AC/AC efficiency |
≥94% at online mode；≥99% at ECO mode； |
|||
As a reliable uninterruptible power supply factory, we will do our best to meet all the needs of customers.
