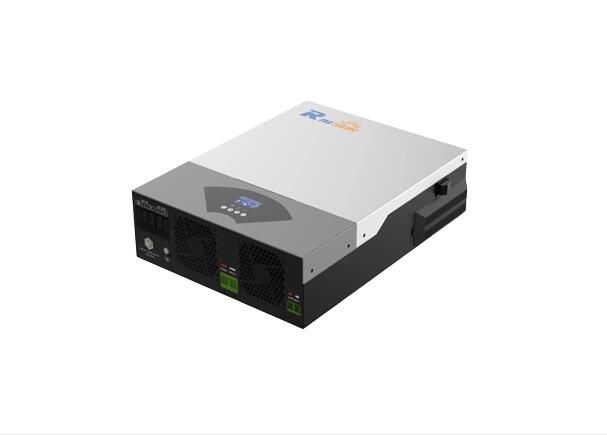

Rated Power 2400W 24VDC Solar Inverter

Rated Power 2400W 24VDC Solar Inverter

The DC 2.4 kw inverter with a rated power of 2400 watts is suitable for application scenarios with relatively large power requirements. It is capable of converting DC power (24 volts) to AC power to power various electronic devices and home appliances. The high rated power of 2400 watts can meet the needs of some large home appliances and industrial equipment, such as refrigerators, washing machines, air conditioners, etc. It has high efficiency and reliability, and can provide stable power output.

Rated Power 2400W 24VDC Solar Inverter Details

Rated Power 2400W 24VDC Solar Inverter High-efficiency output

The rated output power is 2400VA/2400W, which can provide stable and reliable power supply for home and office environments.

Rated Power 2400W 24VDC Solar Inverter Solar charging function

The maximum solar charging current is 80A, and the maximum PV input power is 2400W, which can make full use of solar resources to charge the battery and improve energy utilization efficiency.

Rated Power 2400W 24VDC Solar Inverter Multiple protection measures

with overcharge, overdischarge and overload protection functions to ensure the safe operation of batteries and inverters and prolong the life of equipment.

Rated Power 2400W 24VDC Solar Inverter Multifunctional communication interface

support USB, RS232, GPRS and WIFI communication interface, convenient for monitoring and remote control, and realize intelligent management.

Rated Power 2400W 24VDC Solar Inverter Strong adaptability

a wide range of optional input voltage, suitable for different power environments, frequency range of 50Hz/60Hz, to meet the needs of various electrical equipment.

Specification of Rated Power 2400W 24VDC Solar Inverter

Model

Raisun RSI44-2.4KW

Phase

1-Phase

Maximum PV Input Power

2400W

Rated Output Power

2400VA/2400W

Maxium Solar Charging Current

80A

INPUT

Voltage

230VAC

Selectable Voltage Range

170~280VAC(For Personal Computers)

90~280VAC(For Home Appliances)

Frequency Range

50Hz/60Hz(Auto sensing)

OUTPUT

AC Voltage Regulation(Batt.Mode)

230VAC±5%

Surge Power

4800VA

Efficiency(Peak) PV to INV

98%

Efficiency(Peak) Battery to INV

94%

Transfer Time

10 ms(For Personal Computers); 20ms(For Home Appliances)

BATTERY & AC CHARGER

Battery Voltage

24VDC

Floating Charge Voltage

27VDC

Overcharge Protection

33VDC

Maximum AC Charge Current

60A

SOLAR CHARGER

Maximum PV Array Power

3000W

MPPT Range Operating Voltage

90~400VDC

Maximum PV Array Open Circuit Voltage

450VDC

Maximum Charging Current

80A

Maximum Efficiency

98%

PHYSICAL

Dimension, D×W×H

348*270*95mm

Net Weight(kgs)

5

Comumication Interface

USB/RS232/GPRS/WIFI

OPERATING ENVIRONMENT

Mumidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

0℃ 55℃

Storage Temperature

-15℃ 60℃

There are many photovoltaic inverter manufacturers in China, but we are one of the best choices for you.
