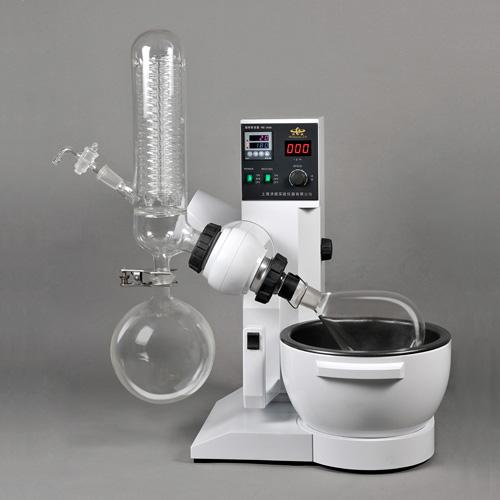

RE-200A Rotary Evaporator

RE-200A with spherical neck and standard neck

Technical specification:

Rotation speed: 20-200r/min.
Temperature range: Water temperature, indoor temperature -90 degree; Oil temperature, indoor temperature -180degree.
Functions: Temperature set and display: Digital display
Rotation set: Rotary button type
Flask capacity: 0.25-2L
Lifting device: Seasaw type push button, automatically lift and lower, travel distance 150mm
Constitution: Motor: Induction motor, output power: 40W
Heating device: : Aluminium alloy teflon, for water bath and oil bath
Condenser: Vertical type, double return integrated spherical neck condenser, which is made of high temperature resistant quality glass through refined process, equipped with spherical neck receiving flask to accomplish the effect of quickly loading and unloading.
Evaporating flask: Eggplant-shape flask (1L) round flask (0.5L-2L), Caliber: 29
Receiving flask: Round-shape flask (1L)
Seal circle: PTFE composite + fluoro-elastomer dual seal circle
Total Power/voltage: 1.5KW~220V50Hz
