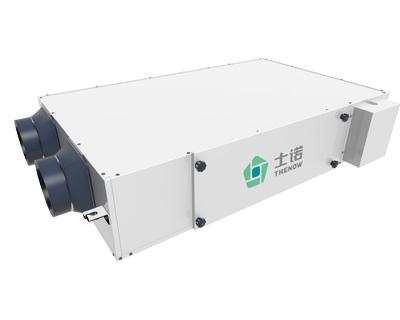

Residential Ceiling ERV/HRV With HEPA System-AG Series
Quantité : 1000 pcs Prix : 200-2000
Residential Ceiling ERV/HRV 218 With HEPA System-AG Series
Thenow residential ceiling mounted energy recovery ventilator-HEPA Series added HEPA filters after G3 or F7 filter which can prevent the fine particles high efficiently. We have a completely range of energy recovery ventilation systems offering different levels of air flows and filters to adapt to different HVAC systems.
Features of Residential Energy Recovery Ventilator With HEPA System-AG Series
Innovative high efficiency counter flow full heat exchanger
Two types available: G3 filter + hrv with hepa filter and G3 filter + F7 filter + HEPA filter
218mm Ultra-thin design, save your space
High efficiency DC motor, low noise
Bypass is optional
Pre heating is optional
CO2 , VOC, PM2.5 and humidity sensors are optional
Sensible heat recovery unit is optional
Application of Heat Recovery Unit Residential With HEPA System-AG Series:
Residential building, Hospital, Offices and shops, Kindergarten, Schools, Hotels, Villa etc.
Technical Datas of Residential Ventilation Systems With HEPA System-AG Series
|
Model |
Voltage |
Rated Power(W) |
Air Flow |
Enthalpy Efficiency(%) |
Outlet Total Pressure(Pa) |
Noise dB(A) |
Weight |
Size |
|
H |
H |
H |
H |
H |
||||
|
TSX150-AG01 |
220V 50Hz 1PH |
95 |
150 |
66 |
80 |
37 |
22 |
936x640x205 |
|
TSX250-AG02 |
220V 50Hz 1PH |
110 |
250 |
64 |
95 |
40 |
23 |
955x640x220 |
|
TSX350-AG01 |
220V 50Hz 1PH |
176 |
350 |
63 |
100 |
43 |
26 |
960x702x260 |
|
TSX250-AG01 |
220V 50Hz 1PH |
78 |
250 |
74 |
100 |
38 |
31 |
1175x686x218 |
|
TSX300-AG01 |
220V 50Hz 1PH |
98 |
300 |
72 |
110 |
41 |
34 |
1245x815x218 |
|
TSX500-AG01 |
220V 50Hz 1PH |
180 |
500 |
72 |
140 |
45 |
49 |
1230x1150x3 |
If you want to know more details of erv for sale, please visit our website.
