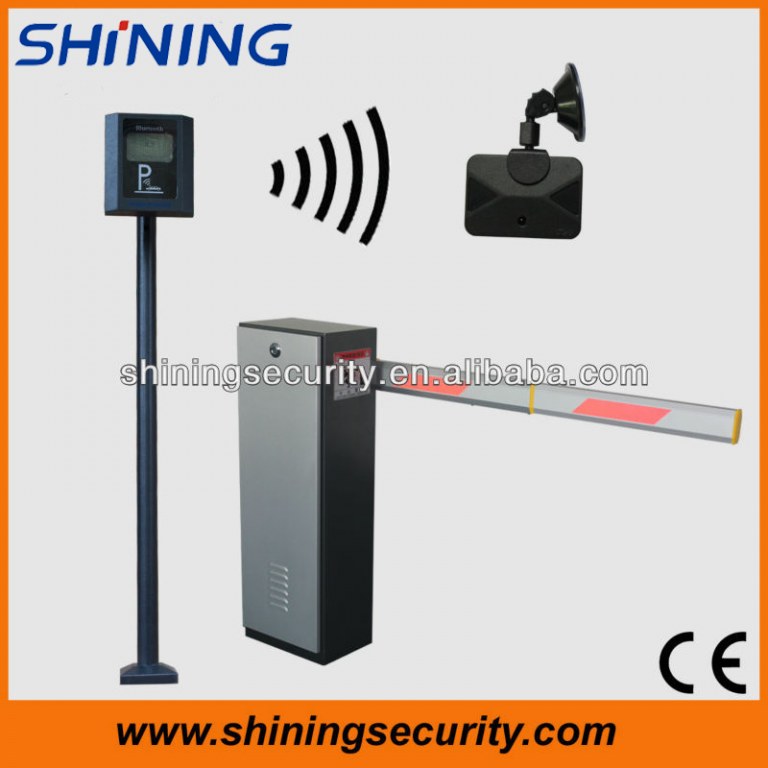

RFID parking system
Introduction:
The CP01 is a long range reader that reads RFID Long Range Cards in a highly secured single
direction. It has up to 20m reading distance.
The CP01 has a high impact and scratch resistant mild steel housing and is 100% weatherproof for outdoor applications. CP01 is an ideal unit for parking and vehicle control applications. CP01 contains a Parking Hold Signal, also able to connect directly to barrier gate using barrier gate output. CP01 is diection-freeand reader module in a single unit.
Features:
1.Long Range Reader: Up to 20meters of reading distance with a long range card;
2.Reader Scanner parts in one single reader unit;
3.Encrypted tag ID and Secure Protocols between Reader and Tags;
4.Supports Standard Wiegand 26bit, 34bit, RS485 output;
5.Direct barrier gate Output (Open Collector : 1sec) OTR (One Time Reading) and HOLD Control Input;
6. Applications: Parking Control, Logistics Tracking, Asset Control, Personal Tracking.
Specifications:
|
Power Supply |
DC12V/2A |
|
Power |
≤12W |
|
Frequency |
433MHZ |
|
Communications Interface |
RS485/19200bps;Wiegand 26bits;Wiegand 34bits |
|
Eletrical Interface |
Loop detector input |
|
Eletrical Output |
Relay |
|
Reading Speed |
<0.2s / ≤80Km/h</span> |
|
Reading Distance |
3-20m |
|
Reading Range |
60-degree tamper area |
|
Working mode |
Standard outdoor mode (default);Indoor parking mode (adjustable) |
|
Working Temperature |
-30 degrees to +75 degrees |
|
Humidity |
10%~90% |
|
Installation |
Reading head direction-free adjustment(defualt);Railing (Optional) |
|
Dimension |
247*276*58(mm) |
|
Net Weight |
5kgs |
|
IP Rating |
IP65 |
