Rfid PET card
Quantité : 1000pieces Prix : us$0.17

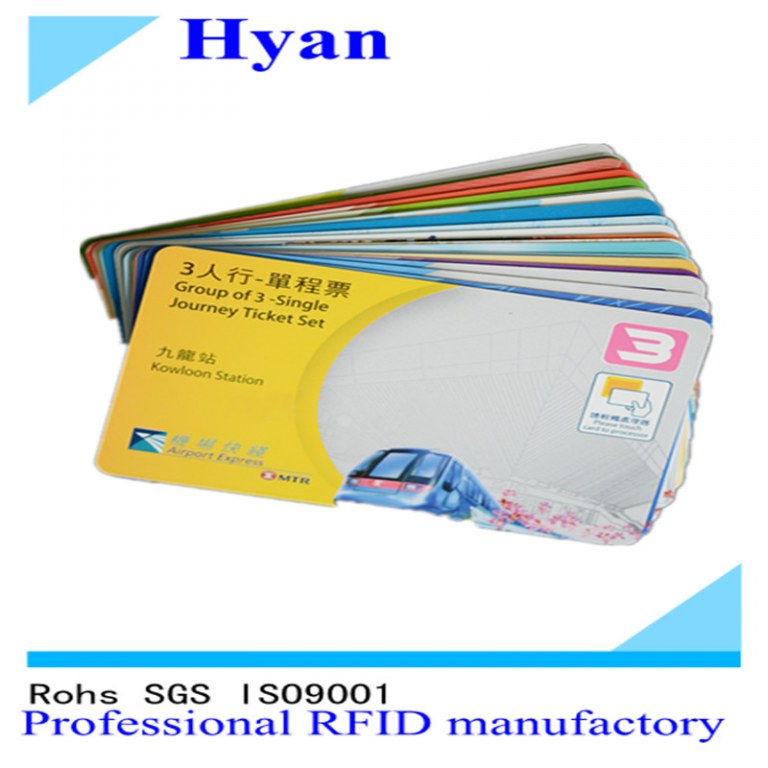

Hyan ticket card is a PET base card
with printing silver antenna in it.
Thickness of the ticket card is 0.34mm.
HYAN PET card series is a PET based card with aluminum antenna technology, the ticket body is much thinner than other PVC cards, its thickness range is just 0.20-0.50mm. which is very suitable for subway single journey ticket, tourist tickets. The ticket is very thin, flexible and easy to be taken with. It can be held more than 0.80mm thickness cards in the cabinet which help to improve the work efficiency.
Specifications:
| Part Number | iT-32 |
| Supported Standard | ISO14443 type A&B |
| Recommended Operating frequency | 13.56 MHz |
| Passive Resonance Frequency (at +25) | 13.56 MHz ± 200kHz |
| Typ. Required activation field strength read (at +25) | 94 dBμA/m# |
| Typ. Required activation field strength write (at +25) | 97dBμA/m# |
| Memory (user programmable) | 512 bits etc |
| Typical programming cycles(at +25) | 100,000 |
| Data retention time (at +55) | 10 years |
| Simultanceous ldentification of cards | Up to 50 cards (reader/antenna dependent) |
| Antenna size | 78mm×47mm |
| Card size | 86mm×54mm |
| Thickness | Chip: 0.18mm |
| Antenna: 6μm | |
| card 0.34mm±0.03mm | |
| Base material | Card: PET |
| Antenna: silver | |
| Operating temperature | -25 to+70 |
| Storage temperature | -40 to +85 |
| Delivery | Single card with four color printing |
| Typical quantity of good units per box |
as customer request |
Personne à contacter : amy guan, +86 755 28035140
