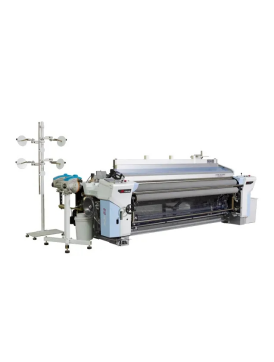

RFJW03 Water Jet Looms
RFJW03 Water Jet Looms
RFJW03 series water jet loom is suitable for weaving light and medium-thickness fabrics. Drawing on Rifa's experience in development of other water jet looms, the design is optimized, the weaving speed and quality of the loom are improved. The loom has varied configurations, it can meet the weaving needs of different customers and is a cost-effective loom.
The RFJW03 series water jet weaving offers a variety of configurations, allowing it to meet the diverse weaving needs of our customers. Whether you're producing delicate, lightweight fabrics or more robust, medium-weight textiles, this loom can be tailored to your specific requirements.
Specification of RFJW03 Water Jet Looms
|
Item |
Specifications |
||
|
Width |
Reed Width |
190, 210, 230, 280, 320, 340, 360cm |
|
|
Working Width |
Reed width minus 0-70cm |
||
|
Weft Color |
2 colors at will |
||
|
Power |
Start Mode |
Super motor / Direct motor |
|
|
Motor Capacity |
2.7kW, 3.0kW, 3.7kW, 4.5kW |
||
|
Working |
Brake through electromagnetism clutch |
||
|
Buttons (prepare, start, stop, forwarder inching, reverse inching, reverse one circle) |
|||
|
Automatic pick finding |
|||
|
Beating |
Lineal beating mechanism |
||
|
Insertion |
Pump |
Plunger pump |
|
|
Nozzle |
Annular nozzle manostat (ceramics jet needle) |
||
|
Accumulator |
Vibration electric drum accumulator (2 color) |
Options: WBS Electric weft |
|
|
Options: Electric weft Drawing device |
|||
|
Shedding Device |
Crank: 4 heald frames, 6 heald frames |
||
|
Cam: 10 heald frames |
|||
|
Dobby: 16 heald frames |
|||
|
Jacquard |
|||
|
Let - off |
|
Electronic or mechanical |
|
|
Max Tension |
2500N, 5000N |
||
|
Back-roller |
Standard |
||
|
Flange Diameter |
800mm, 1000mm |
Options: 1000mm |
|
|
Take - up |
|
Electronic or mechanical |
|
|
Cloth Diameter |
520mm |
||
|
Cloth Route |
Type S1, Type S2 |
||
|
Cone Stand |
4 cone stand |
||
|
Selvage |
Planet gear |
||
|
Handling of Yarn End |
Spindle false twisting |
||
|
Weft Cutter |
Mechanical |
||
|
Temple |
Up-mounted double temple shaft with double rings |
||
|
Dehydration |
Tiny crevice pipe suction (Mechanical fan) |
||
|
Stop motion |
Weft Stop |
OPF photoelectric sensor |
|
|
Display of Stop Reasons |
Screen panel |
||
|
Mult-function 4-light indicating |
|||
|
Automatic |
Main Control |
Auto control, fault removal, itself a diagnosis |
|
|
Showing working info and maintenance data |
|||
|
Net |
Centralizing net connection, loom supervisory system |
||
Features of RFJW03 Water Jet Looms
1
High-Speed Weaving: The RFJW03 Water Jet Loom uses a water jet mechanism for high-speed weaving, significantly increasing production efficiency and making it ideal for mass production.
2
Versatility: This loom can handle a variety of yarn types, including synthetic and blended yarns, allowing for the production of a wide range of fabric types.
3
Energy Efficiency: The RFJW03 Water Jet Loom is designed to use water efficiently, reducing energy consumption and making it a more environmentally friendly option for textile production. Its design also minimizes water waste, contributing to its overall sustainability.
As one of water jet loom manufacturers, we can provide kinds of water jet weaving machine for sale, and the water jet loom price is reasonable, if you have needs, please contact us.
Zhejiang Rifa Rapier Loom was established in 2002, located in Xinchang, Zhejiang, the company is a national key high-tech enterprise.
Relying on scientific and technological innovation and introducing from outside as a means, the company actively cooperates with the Chinese Academy of Sciences and Zhejiang University, Donghua University, Shanghai University of Science and Technology, Zhejiang University of Science and Technology, Schneider, Siemens, Uster, and other major colleges and enterprises, and organizes and implements rationalization projects and CIMS projects.
